Product Description

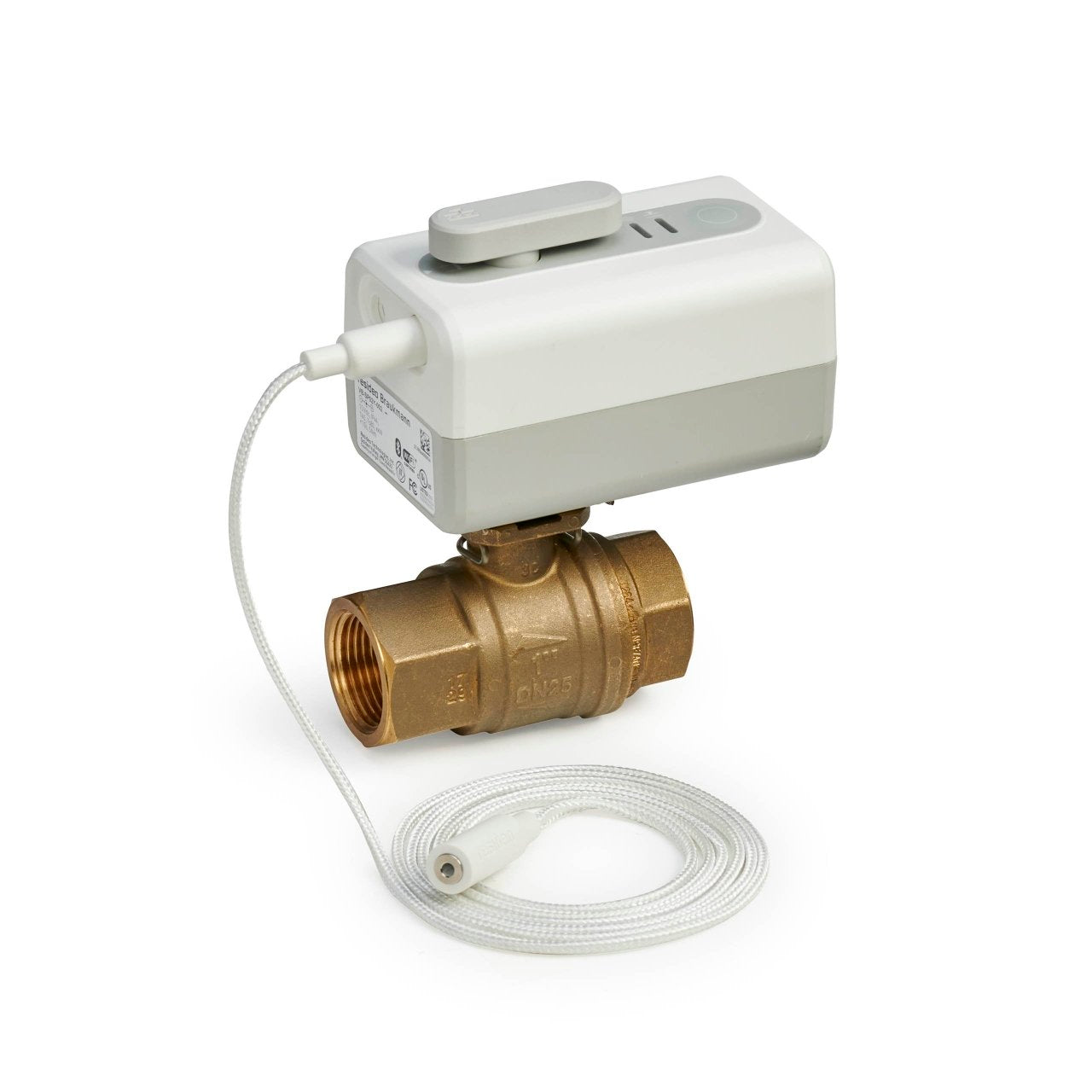

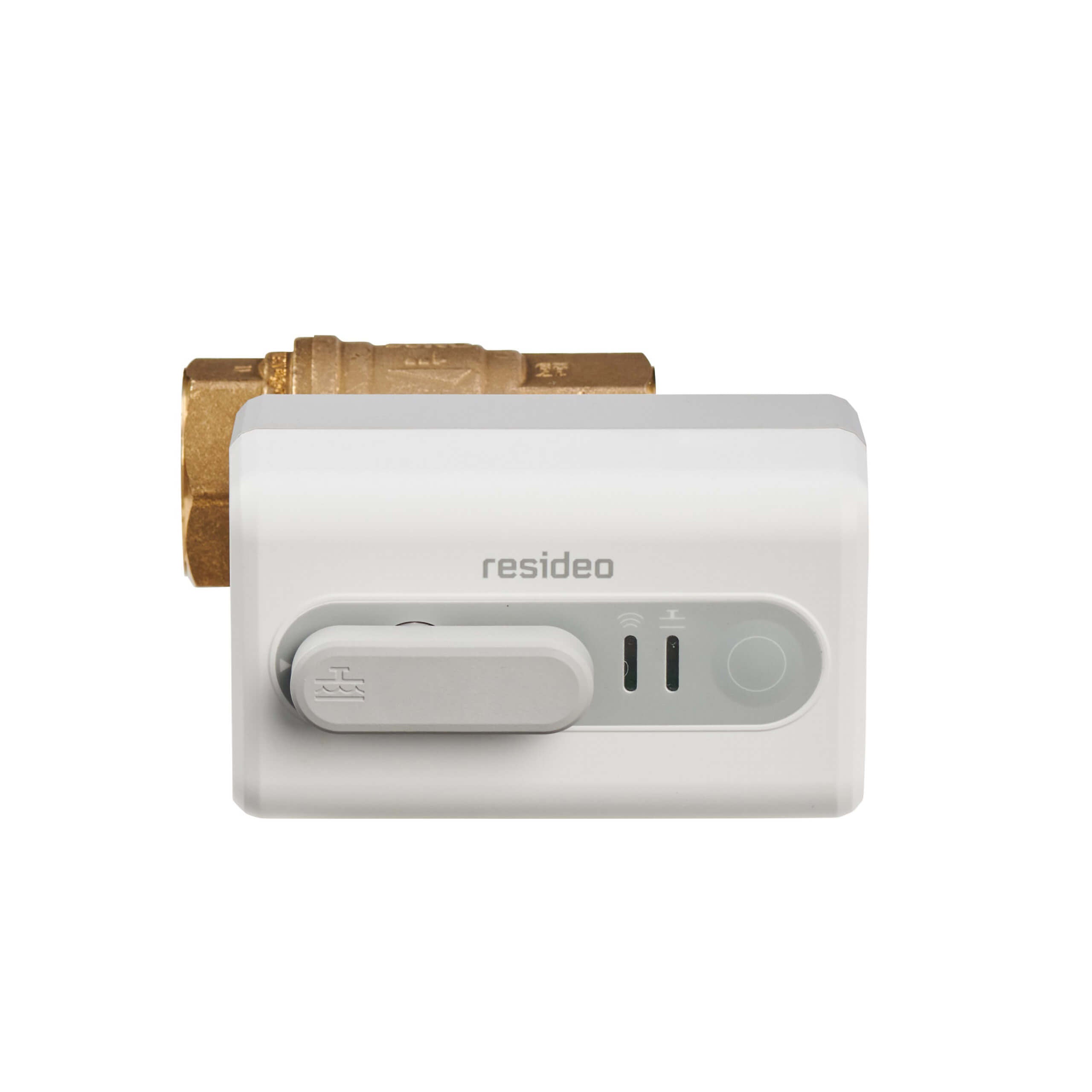

The HONEYWELL VWS02Y-1 is a L5 WiFi water leak shutoff valve. This smart device detects leaks through the included sensor cable and automatically shuts off the water supply, helping prevent expensive water damage. It can be controlled remotely via the app and has a manual override to turn on or off water.
- Automatic water shutoff protection

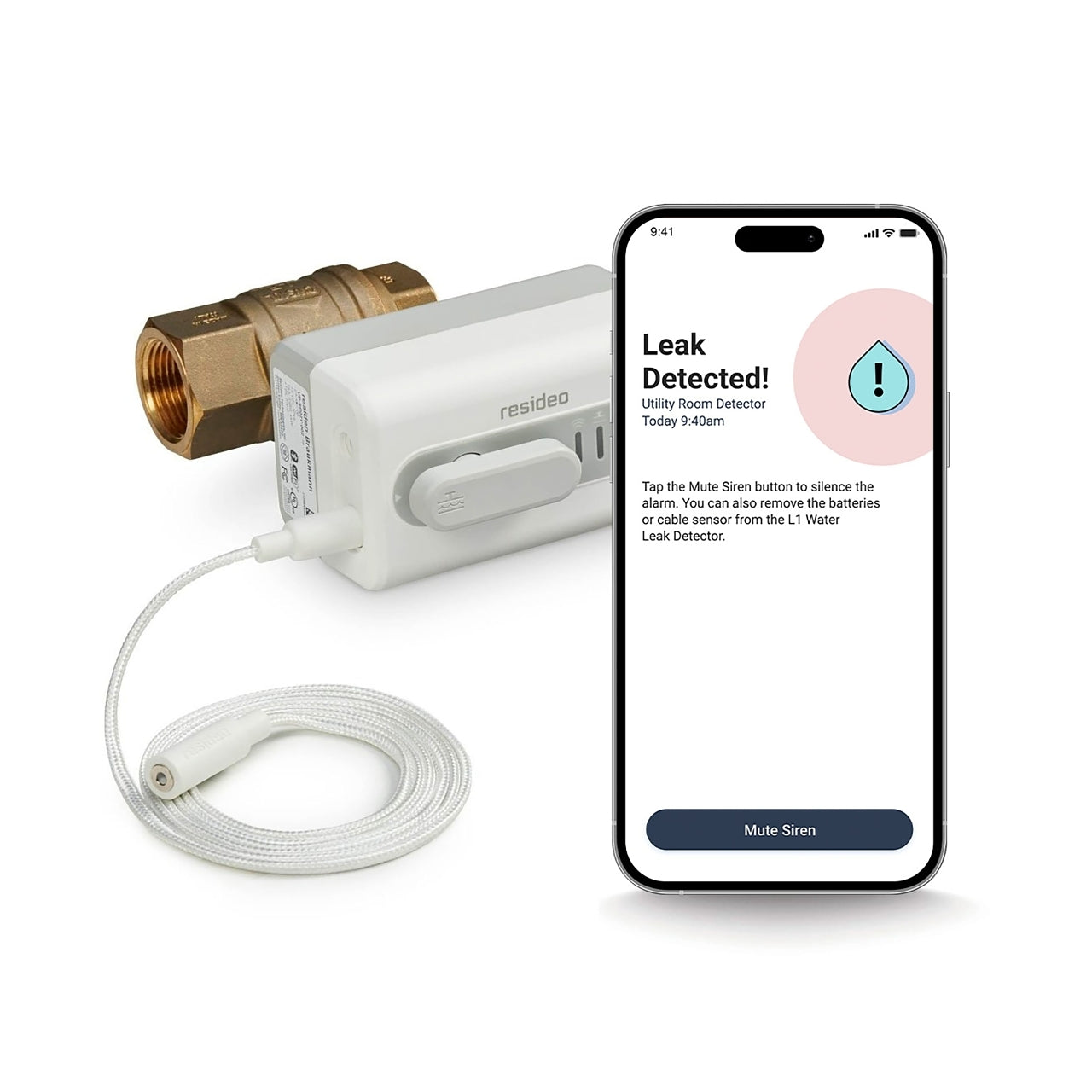

- Empower homeowners with mobile and email alerts when a water leak is detected.
- Extendable coverage with additional cables to extend the sensor length to 500 feet.
Product Highlights
The L5 WiFi Water Leak Shutoff Valve helps safeguard belongings and the home’s structure from potential costly damage.
Product Information
Standard Information
-
Brand: HONEYWELL
-
Manufacturer Part Number: VWS02Y-1
-
Country of Origin: Czech Republic
Technical Specifications
-
Application: Water Leak Detection, Water Shut off Valve
-
Approvals and Standards: CE EMC 2014/30/EU, CE RED 2014/53/EU, EN 60730-1, EN 60730-2-14, UKCA, CAN/CSA C22.2, UL 60730-1, UL 60730-2-14, WEEE 2012/19/EU, ES 116, RoHS 2011/65/EU, ES 50040083, REACH 1907/2006, FCC part 15, subpart C, RSS-247
-
Pipe Size: 1 in
-
DN Size: DN25
-
Rated Torque: 44.25 in-lbs, 5 Nm
-
Breakaway Torque: 57.53 in-lbs, 6.5 Nm
-
Wireless Connectivity: WiFi frequency band of 2.4GHz, 802.11 b/g/n, Bluetooth 4.1
-
Product Features: Auto Shutoff Through Water Leak and Freeze Sensor, Control the L5 WiFi Water Leak Shutoff Valve Remotely Via the App, Manual Override to Turn On or Off Water, Easy Install
-

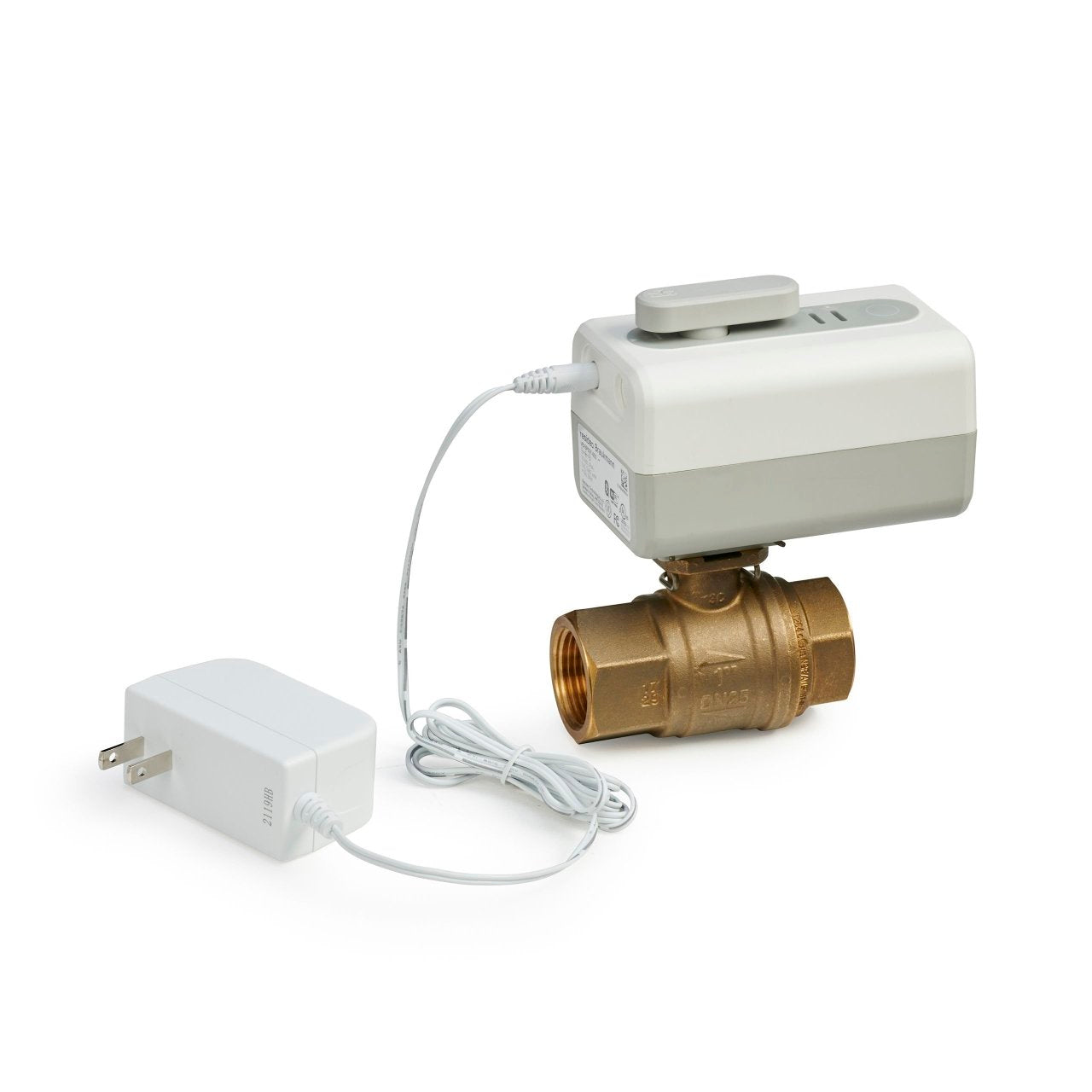

Includes: L5 Actuator, Lead-free Ball Valve, Power Supply Adapter, Actuator to Ball Valve Metal Clip, 5 ft Water Leak Detector Cable
-
Connection Type: NPT
-
Valve Type: Ball Valve
-
Lead Free: Yes
-
Protection Class: IPX4, Indoor, UL Type 2
-
Mounting Location: Install the L5 Water Valve on the main water line after the main water shutoff valve and the pressure reducing valve (if applicable).
-
Mounting Option: Valve can be installed in any orientation
-
Actuator Connection: Ball Valve Flange size F03
-
Media Temperature (Min): 36 °F, 2 °C
-
Media Temperature (Max): 149 °F, 65 °C
-
Ambient Operating Temperature (Min): 32 °F, 0 °C
-
Ambient Operating Temperature (Max): 113 °F, 45 °C
-
Compatible App: First Alert App, Resideo App
-
Manual Override: Yes
-
Mounting Accessories: Metal Clip
-
Product Height: 5.98 in, 152 mm
-
Product Length: 5 in, 127 mm
-
Product Width: 2.67 in, 68 mm
-
Additional Dimensions Details: 10 ft cord on Power Supply Adapter
-
Brand Name: Honeywell
-
Manufacturer: Honeywell Home
-
Manufacturer Part Number: VWS02Y-1
-
Product Line: Braukmann
-
Product Name: VWS02Y-1 - L5 WiFi Actuator with 1 in NPT Ball Valve
-
Product Type: Actuator
-
Connectivity Technology: Wireless
-
Wireless Technology: Bluetooth, WiFi
-
Height: 5.98"
-
Width: 2.67"
-
Length: 5"
-
Certifications & Standards: CAN/CSA C22.2, CE EMC 2014/30/EU, CE RED 2014/53/EU, EN 60730-1, EN 60730-2-14, FCC part 15, subpart C, REACH 1907/2006, RoHS 2011/65/EU, ES 50040083, RSS-247, UKCA, UL 60730-1, UL 60730-2-14, WEEE 2012/19/EU, ES 116
-
Country of Origin: CZ
-
Size: 1"
-
Part Type: WIFI Water Leak Shutoff Valve
-
Thread Type: FPT
