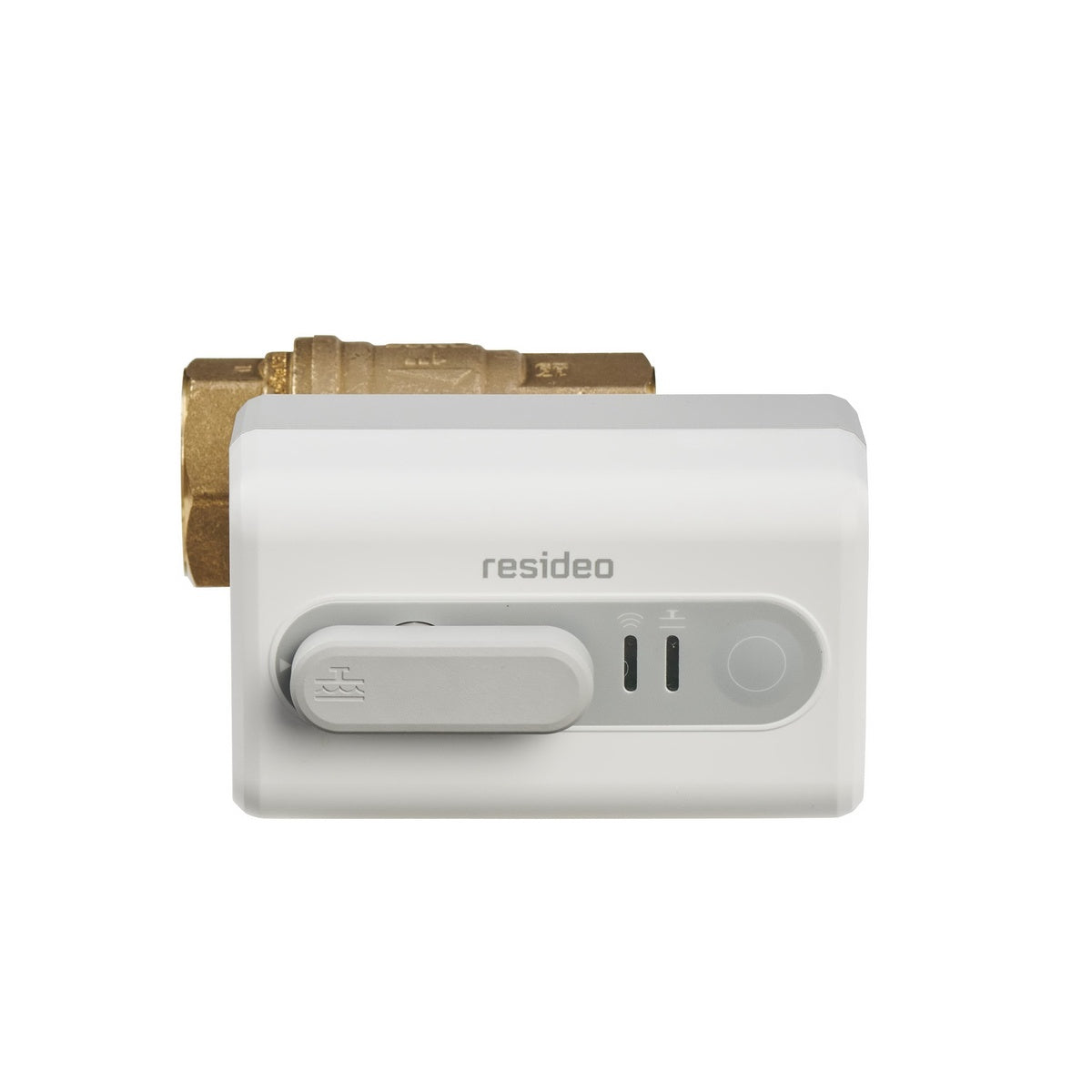

Honeywell VWS02Y-1/2 WiFi actuator with 1/2 in NPT ball valve 100-240 V (1/2 in NPT)

Product Description

Honeywell VWS02Y-1/2 is a WiFi-enabled L5 water leak shutoff valve with an integrated 1/2 in NPT lead-free ball valve. It provides remote control via WiFi, manual override, and automatic shutoff on leak or freeze detection. The unit includes an L5 actuator, power supply adapter, actuator-to-valve metal clip and a 5 ft water sensing cable; electrical connection is via a 10 ft cable. Operating voltage is 100 to 240 V.

• L5 WiFi actuator for remote control and manual override; responds to leak and freeze sensors.
• Lead-free two-way 1/2 in NPT ball valve for potable water; pipe size DN15 and pressure rating minimum PN10.
• Includes power supply adapter, actuator-to-ball-valve metal clip, and 5 ft water leak detector cable; dimensions 5.16 in H x 4.61 in L x 2.67 in W.

Product Highlights

WiFi-enabled shutoff valve with L5 actuator, 1/2 in NPT lead-free ball valve, and 5 ft leak detector cable

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: VWS02Y-1/2

Technical Specifications

• Brand: HONEYWELL
• Manufacturer Part Number: VWS02Y-1/2
• Part Description: L5 WiFi water leak shutoff valve with 1/2 NPT ball valve actuator and water sensing cable
• Connection Size: 1/2 in NPT
• Valve Type: Ball valve
• Actuator: L5 WiFi actuator
• Application: Water leak detection and shutoff
• Includes: L5 actuator; lead-free ball valve; power supply adapter; actuator-to-ball-valve metal clip; 5 ft water leak detector cable
• Electrical Connections: 10 ft cable
• Voltage: 100 to 240 V
• Frequency: 50 Hz / 60 Hz
• Ambient Temperature Range: 0 °C to 45 °C (32 °F to 113 °F)
• Fluid Temperature Range: 2 °C to 65 °C (36 °F to 149 °F)
• Pressure Rating: Minimum PN10
• Body Pattern: Two-way
• Pipe Size: 1/2 in (DN15)
• Controlled Fluid: Potable water
• Dimensions: 5.16 in H x 4.61 in L x 2.67 in W
• Mounting: Installable in any orientation
• Approvals: CAN/CSA C22.2; CE EMC 2014/30/EU; CE RED 2014/53/EU; RoHS 2011/65/EU; REACH 1907/2006; FCC part 15, subpart C; Proposition 65
• Available Accessories: Leak detector cable; WiFi water leak and freeze detector
