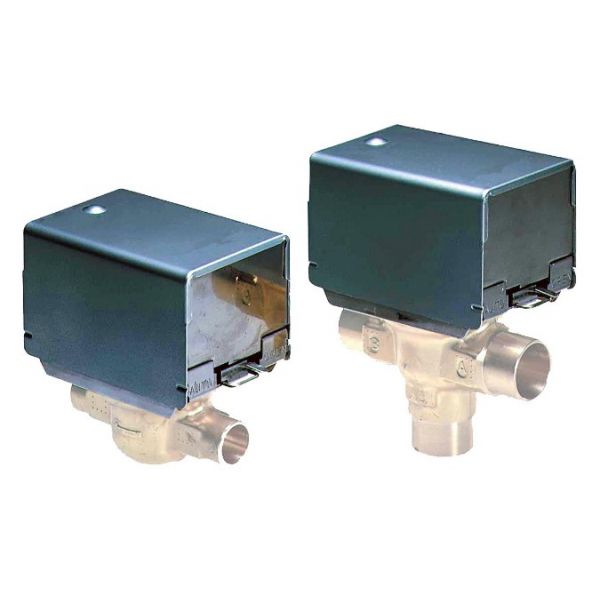

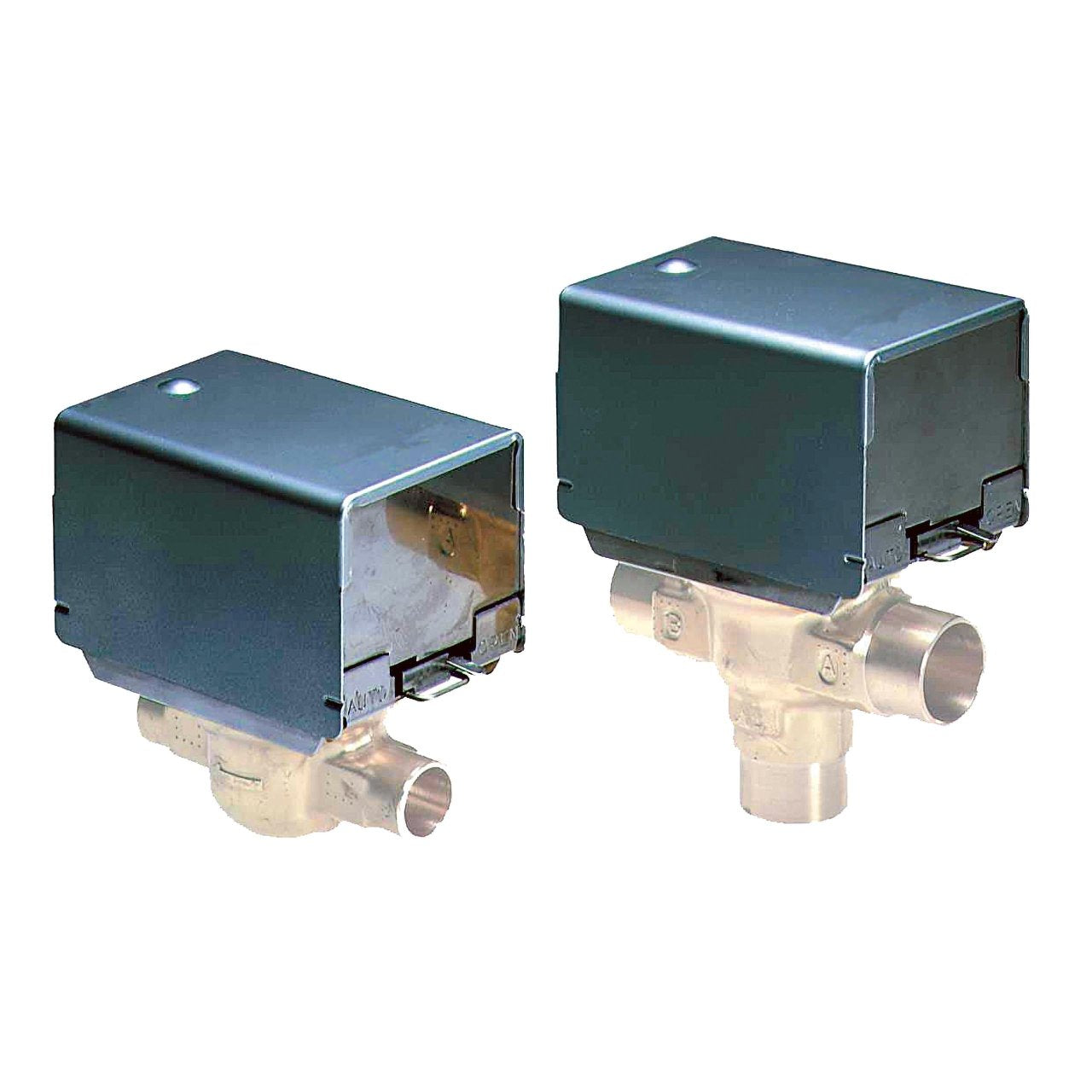

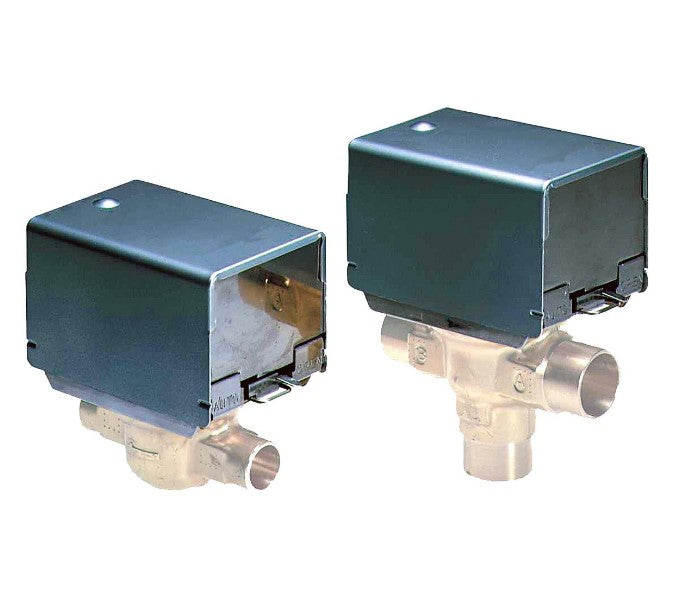

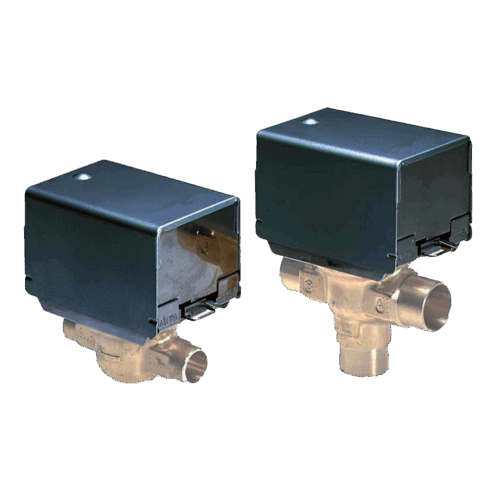

HONEYWELL VU842A1046 2-Position Valve Actuator

Product Description

The HONEYWELL VU842A1046 is a 2-position valve actuator designed for VU52 and VU54 series valves in HVAC systems. It requires a twenty-four-volt AC power supply at fifty to sixty Hertz. This actuator allows for on/off control of low-pressure steam, hot, or chilled water with up to fifty percent glycol. It features a durable stainless steel case and aluminum cover, suitable for use in condensing and noncorrosive environments.

• Designed for two-position control of valves.
• Operates on twenty-four volts AC, fifty to sixty Hertz.
• Includes a spring return with a six-second cycle time.

Product Highlights

This actuator is essential for precise control in various heating and cooling applications.

Product Information

Standard Information

• Manufacturer: Honeywell
• MPN: VU842A1046

Technical Specifications

• Voltage: 24V
• Frequency: 50Hz to 60Hz
• Control Signal: Two position, SPST
• Operating Temperature: 34°F to 125°F
• Fluid Temperature: 200°F
• Material: Stainless Steel Case, Aluminum Cover
• Spring Return Timing: 6 Sec
• Length: 30
• Height: 2.38
• Depth: 2-3/8
