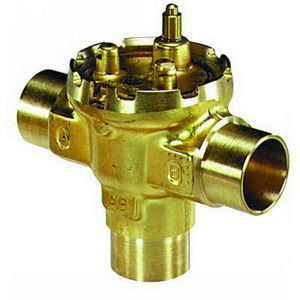

Honeywell VU54S2016 Three-Way Fan Coil Valve 7 Cv 3/4 inch Sweat

Product Description

The Honeywell VU54S2016 is a three-way fan coil valve with a seven Cv rating and a three-quarter inch sweat connection. This valve is suitable for both heating and cooling applications. Its compact design allows for easy installation within tight spaces.

• Durable forged brass body for longevity
• Quick opening flow curve for efficient operation
• Compatible with hot and chilled water

Product Highlights

The VU54S2016 model is designed for optimal performance in fan coil units, terminal reheat coils, and convectors. The triple o-ring seal ensures corrosion resistance and prevents water leakage.

Product Information

Standard Information

• Manufacturer: Honeywell
• Model Number: VU54S2016

Technical Specifications

• Type: Diverting or Mixing
• Nominal Size: 3/4 Inch
• End Style: Sweat
• Pressure Rating: 300 psi
• Coefficient of Volume: 7 Cv
• Material: Forged Brass Body, Brass Stem, Buna-N Plug, EPDM O-Ring Seal
• Standard/Approvals: CSA Certified
