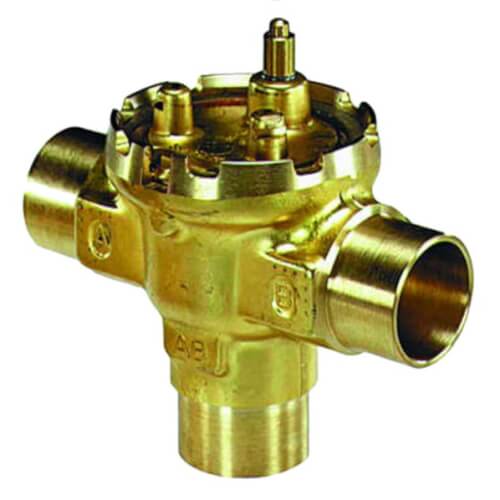

Honeywell VU54N1007 3-Way Fan Coil Valve 1/2 NPT 4.0 Cv

Product Description

The Resideo Honeywell VU54N1007 is a three-way fan coil valve designed to manage the flow of hot or chilled water in commercial HVAC systems such as fan coil units, terminal reheat coils, and convectors. This valve ensures optimal performance in high-pressure zones.

• Compact construction simplifies installation.
• Triple O-ring seal prevents leaks.
• Patented ball seal offers long service life.

Product Highlights

The VU54N1007 provides three-way diverting control of water and operates under a pressure rating of up to 300 psi (2,000 kPa). This valve fits snugly under most baseboard convectors and offers a quick opening flow curve with NPT end connections suitable for iron or steel piping.

Product Information

Standard Information

• Brand: Honeywell Home
• MPN: VU54N1007
• Product Name: 3-Way Fan Coil Valve 1/2 NPT, 4.0 Cv

Technical Specifications

• Flow Capacity: 4.0 Cv
• Operating Pressure: 300 psi (2,000 kPa)
• Connection Type: FNPT x FNPT
• Body Pattern: 3-Way
• Actuator Type: Valve
• Weight: 1.34
• Dimensions: 4 inches (length) x 4.2 inches (width) x 2.8 inches (height)
• Shipping Dimensions: 4.25 inches (depth) x 4 inches (width) x 2.75 inches (height)
