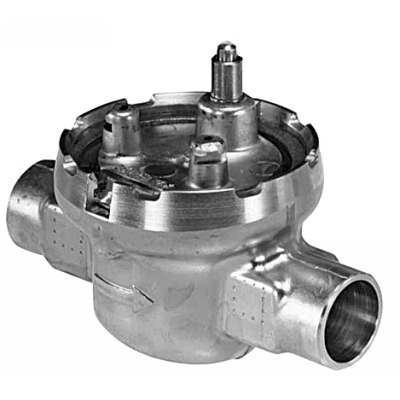

Honeywell VU53N1058 Two-Way Fan Coil Zone Valve

Product Description

The Honeywell VU53N1058 is a two-way fan coil zone valve made for managing water flow in HVAC systems. It has a normally closed design and comes with a 1/2 NPT end connection, making it suitable for iron or steel piping. This valve fits well within most baseboard convectors when the actuator is attached to the valve body. It features a patented ball seal that enhances operational life and ensures a tight shutoff. There is also a triple O-ring seal to protect against corrosion and water leakage around the drive shaft. This valve operates at a pressure rating of 300 psi (2,000 kPa, PN20) and provides quick opening flow control.

• Provides 2-way, straight-through control of water.
• Features NPT end connections for iron or steel piping.
• Incorporates a triple O-ring seal to reduce corrosion and water leakage.

Product Highlights

The Honeywell VU53N1058 is ideal for HVAC applications that require reliable water flow control and robust construction.

Product Information

Standard Information

• Brand: Honeywell
• MPN: VU53N1058

Technical Specifications

• Operating Pressure Rating: 300 psi (2,000 kPa, PN20)
• End Connections: NPT for iron or steel piping
• Manufacturer: Honeywell
