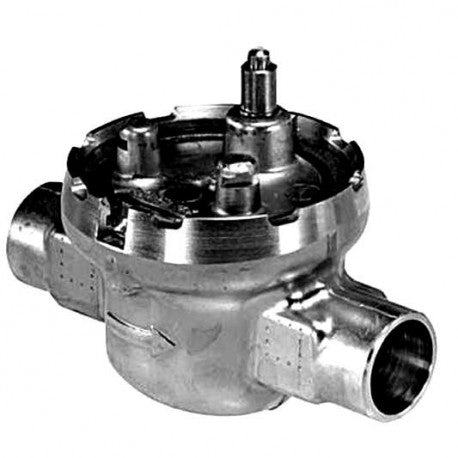

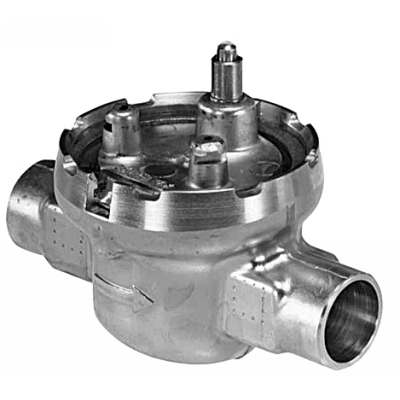

HONEYWELL VU53N1017 Two-Way Fan Coil Valve - 3/4 NPT, 8.0 Cv

Product Description

The Honeywell VU53N1017 is a two-way fan coil valve for regulating the flow of chilled or hot water in HVAC systems. This valve supports a glycol mixture up to sixty percent. It is built with a brass body, seat, and stem, ensuring durability and reliability. Installation is straightforward with three-quarters inch female NPT connections compatible with iron or steel piping.

• Designed for hot or chilled water flow control
• Compatible with VU443 or VU843 actuators for operation
• Compact shape allows installation in restricted spaces

Product Highlights

Efficiently manages water flow in HVAC applications and is suitable for various commercial settings.

Product Information

Standard Information

• Brand: Honeywell
• MPN: VU53N1017

Technical Specifications

• Operating Pressure Rating: 300 psi (2,000 kPa, PN20)
• End Connections: NPT for iron or steel piping
• Dimensions (inches): Length between A to B ports: 3 3/8 in.; Center line of A&B ports to end of AB port: 1 11/16 in.
• Maximum Safe Operating Pressure: 300 psig (2068 kPa)
• Pipe Size: 3/4 inch (DN20)
• Capacity: 8.0 Cv, 7.0 kvs
• Material: Brass body, Buna-N rubber plug/ball/disc, EPDM rubber packing
• Flow Characteristic: Quick opening
