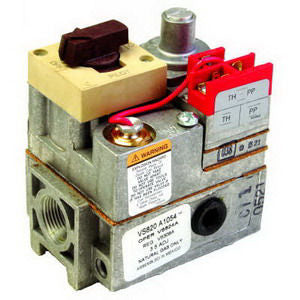

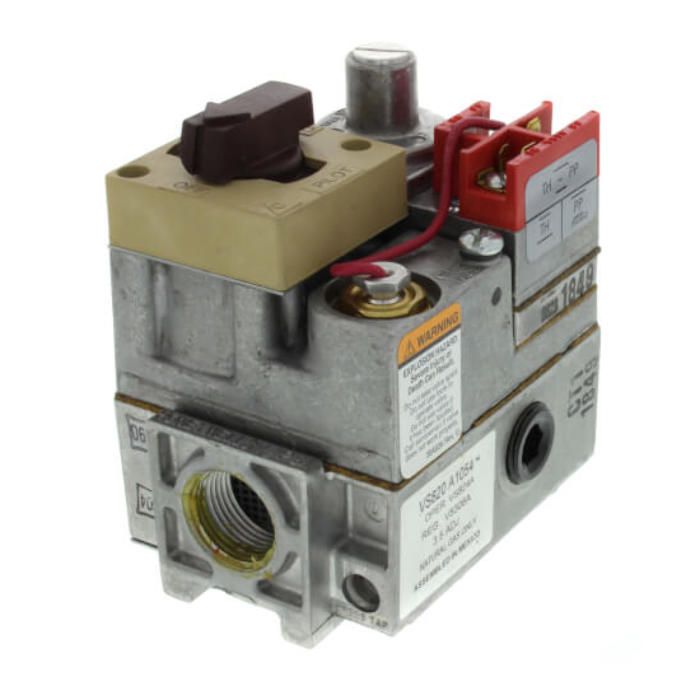

Honeywell VS820A1054/U Millivolt Gas Valve

Product Description

The Honeywell VS820A1054/U is a millivolt gas valve designed for reliability and ease of installation in gas-fired appliances. This gas valve features a combination screw and 1/4 inch male quick connects, making it straightforward to connect. It operates on natural gas with a coil voltage of seven hundred fifty millivolts.

• Features two 3/4 inch x 1/2 inch reducer bushings.
• Includes a safety shut-off mechanism on pilot flame failure.
• Provides adjustable pilot flow for precise control.

Product Highlights

This gas valve is suitable for residential combustion systems. It meets safety standards and ensures efficient operation in various heating applications.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: VS820A1054/U

Technical Specifications

• Gas Type: Natural Gas
• Nominal Size: 3/4 inch
• Pressure Rating: 0.5 psi
• Nominal Capacity: 34000 - 425000 BtuH
• Coil Voltage: 750 mV
• Dimensions: 4-3/4 inch H x 4-1/16 inch W x 3-3/16 inch D
• Ignition Type: Standing Pilot
• Temperature Range: 32 - 175 deg F
