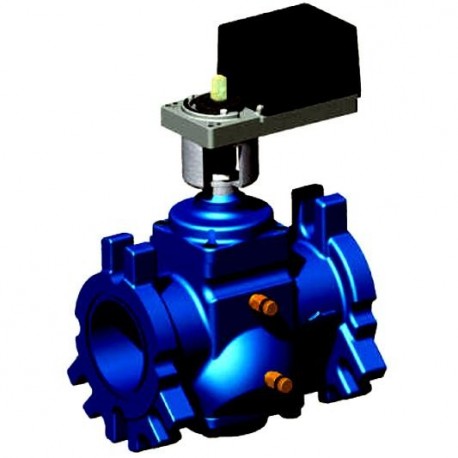

HONEYWELL VRW2KV4SMD Pressure Independent Control Valve

Product Description

The HONEYWELL VRW2KV4SMD is a reliable pressure independent control valve suitable for HVAC systems. This valve maintains a steady flow of hot or chilled water, adapting to pressure changes automatically. It features a built-in pressure control cartridge that balances flow effectively.

• Flanged connection for installation in two and a half to six inches pipes.
• Stainless steel pressure regulator to ensure constant pressure.
• Multi-turn actuator with floating or modulating inputs.

Product Highlights

This valve is designed for durability and optimal performance in various applications, including water and glycol solutions up to fifty percent concentration.

Product Information

Standard Information

• Manufacturer: Honeywell
• Brand: Honeywell

Technical Specifications

• MPN: VRW2KV4SMD
• Type: Assembly
• Connection: Flange
• Fail-Safe: Spring Return
• Trim Material: Stainless Steel
• Pattern: 2-way
• Size: 3 inches and 4 inches
• Control Signal: 2-10VDC, 4-20 mA
• Valve Type: Dynamic Pressure Regulated Control Valve
• Body Style: Two-way, multi-turn, non-rising stem valve
• Pipe Size: Two to six inches
• Body Pressure Rating: 580 psig at 248°F
• Controlled Medium: Water or Glycol
• Medium Temperature Range: -4°F to 248°F
• Maximum Differential Pressure: 58 psid
• Close-off Pressure: 101 psid
• Flow Characteristics: Equal percentage
• Body: Ductile iron
• Flow Optimizer: Stainless steel
• Stem Seals: EPDM and Nitrile O-rings
• Ball Seals: Reinforced Teflon seals
• Regulator: EPDM rolling diaphragm
• Supply Voltage: 24VAC
• Actuator Stroke: 6 x 360 degrees
• Timing: 150 seconds/60Hz
• Feedback: 4-20 mA built-in
• Warranty: 1 year
• Dimensions: 12.6 x 10-9/16 x 16.7 inches
• Condition: New
• Unit of Measurement: Each
• Production Status: Active
