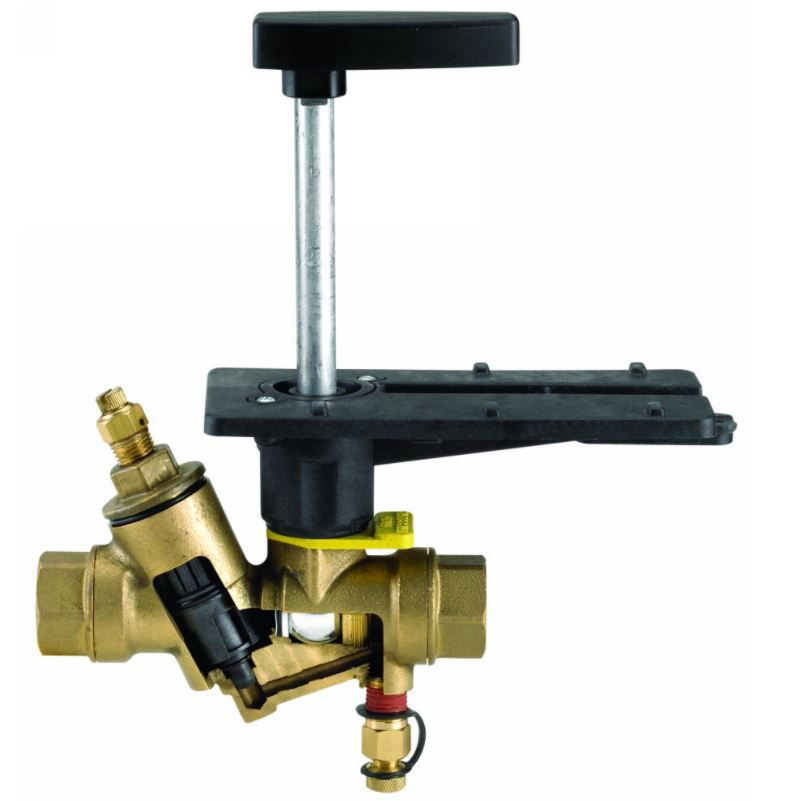

Honeywell VRN2H6PX0000 Pressure Independent Control Valve 3 in NPT 2-Way 75 GPM

Product Description

The Honeywell VRN2H6PX0000 is a pressure independent control valve designed for precise flow and temperature management. Its main function is to control the flow in hydronic heating systems, ensuring that the desired temperature is maintained even when pressure varies. This valve is suitable for water and glycol solutions, making it a versatile choice for HVAC systems.

• Features a three-inch NPT connection.
• Designed for two-way flow control with a capacity of seventy-five gallons per minute.
• Constructed with brass trim and a durable DCA profile.

Product Highlights

This valve is crucial in maintaining system efficiency and performance, important for any HVAC technician.

Product Information

Standard Information

• Manufacturer: Honeywell
• MPN: VRN2H6PX0000

Technical Specifications

• Type: Control Valve
• Connection: NPT
• Trim Material: Brass
• Pattern: 2-way
• Size: 3 inches
• GPM: 75 GPM
• Valve Type: Dynamic Pressure Regulated Control Valve
• Body Style: Two-way ball valve, straight-through flow, full port with patented flow control insert
• Pipe Size: 1/2 inches to 3 inches with female NPT pipe fittings
• Body Pressure Rating (maximum): 360 psi at 250°F
• Controlled Medium: Water or Glycol solutions up to 50%
• Medium Temperature Range: -22°C to 250°F
• Maximum Differential Pressure: 1 gpm to 95 gpm
• Close-off pressure: 100 psid
• Flow Characteristics: Equal percentage with flow control insert
• Body: Forged brass (ASTM B283)
• Flow Optimizer: Laser-milled, glass-reinforced Noryl
• Trim (ball and stem): Nickel-chrome plated brass or stainless steel
• Stem Seals: EPDM O-ring and Teflon bearings
• Ball Seals: Reinforced Teflon seals with EPDM O-rings
• Regulator: Hydrogenated acrylonitrile-butadiene rubber rolling diaphragm
• Compatible Actuators: Various Honeywell models
• Minimum Torque Required: 35 lb-in up to 3 inches
• Warranty: 1 year on valves, 5 years on actuators
