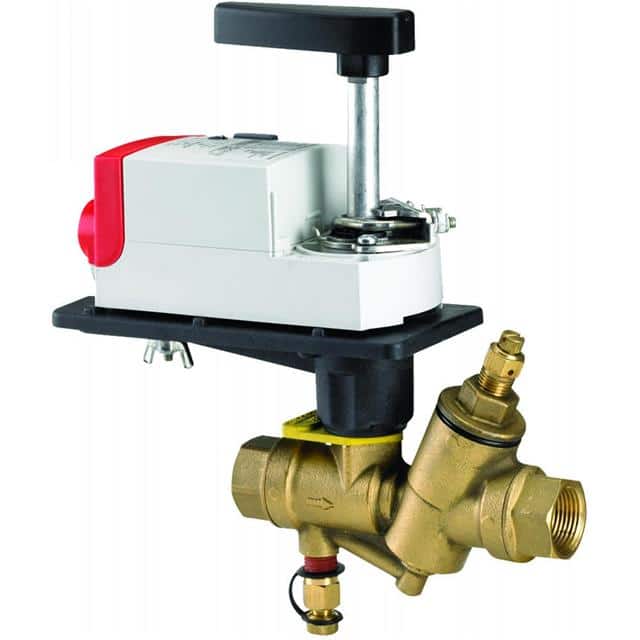

HONEYWELL VRN2H3SXC002 Pressure Independent Control Valve and Actuator Assembly

Product Description

The Honeywell VRN2H3SXC002 is a two-way pressure independent control valve assembly. This valve maintains a steady flow of hot or chilled water with glycol solutions up to fifty percent in closed-loop HVAC systems, regardless of pressure changes. It works with Honeywell direct coupled actuators (DCA) and includes a built-in differential pressure regulator that allows fluid flow to remain constant despite supply pressure variations. The design matches the required coil flow, minimizing the need for system balancing.

• Suitable for water or glycol solutions up to fifty percent
• Features a differential pressure regulator for constant pressure drop
• Equipped with an upstream test port for venting or pressure gauge attachment

Product Highlights

This valve assembly ensures optimal flow in HVAC systems, making it key for efficient heating and cooling control.

Product Information

Standard Information

• Body Style: 2-Way ball valve, straight-through flow, full port with patented flow control insert
• Body Pressure Rating: 360 PSI @ 250F (121C)

Technical Specifications

• Controlled Medium: Water or glycol solutions up to fifty percent, not suitable for combustible gases, oil, or steam
• Medium Temperature Range: (-22F to 250F)
• Close-off Pressure: 100 PSID
• Type: Control valve
• Supplier: Jackson Control
• Package: Box
• Series: Supplier
• Status: Active
