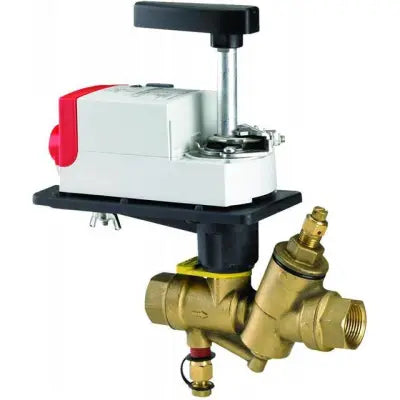

HONEYWELL VRN2H1SX4002 Pressure Independent Control Valve Assembly

Product Description

The Honeywell VRN2H1SX4002 is a pressure independent control valve assembly with an electric actuator. This two-way valve uses a three-inch NPT connection and provides a flow rate of fifty gallons per minute. It is built with stainless steel trim and includes a direct coupled actuator (DCA) profile. The valve is ideal for managing hot or chilled water, as well as glycol solutions up to fifty percent, in closed-loop HVAC systems. It ensures a steady flow regardless of pressure changes.

• Features a three-inch NPT connection and a fifty gallons per minute flow rate.
• Designed for use with hot or chilled water and glycol solutions up to fifty percent.
• Maintains constant flow independent of pressure variations.

Product Highlights

The valve operates efficiently in various environments, maintaining productivity in HVAC applications.

Product Information

Standard Information

• Manufacturer: Honeywell
• Brand: Honeywell

Technical Specifications

• MPN: VRN2H1SX4002
• Type: Assembly
• Connection: NPT
• Size: three inches
• Pattern: two-way
• Flow Rate: fifty gallons per minute
• Trim Material: Stainless Steel
• Control Signal: Floating, Two Position
• Input Voltage: twenty-four VAC
• Weight: eighteen pounds
• Body Style: Two-Way ball valve, straight-through flow, full port with patented flow control insert
• Body Pressure Rating: three hundred sixty PSI at two hundred fifty degrees Fahrenheit
• Controlled Medium: Water or Glycol solutions up to fifty percent
• Medium Temperature Range: negative twenty-two degrees Fahrenheit to two hundred fifty degrees Fahrenheit
• Close-off Pressure: one hundred PSID
• Product Status: Active
