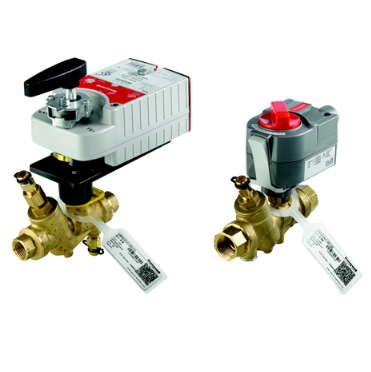

Honeywell VRN2GQSXC000 Pressure Independent Control Valve and Actuator Assembly

Product Description

The Honeywell VRN2GQSXC000 is a two and a half inch NPT, two-way pressure independent control valve and electric actuator assembly. This product ensures consistent flow of hot or chilled water in closed-loop HVAC systems, even under varying pressure conditions.

• Maintains constant flow in HVAC systems.
• Features a differential pressure regulator.
• Includes an electric actuator with auxiliary switches.

Product Highlights

This assembly is designed for effective fluid control in HVAC applications.

Product Information

Standard Information

• Body Style: 2-Way ball valve, straight-through flow, full port with patented flow control insert.
• Controlled Medium: Water or glycol solutions up to 50%. Not suitable for combustible gases, oil, or steam.

Technical Specifications

• Body Pressure Rating: 360 PSI at 250F (121C)
• Medium Temperature Range: Negative twenty-two F to 250F
• Close-off Pressure: 100 PSID
