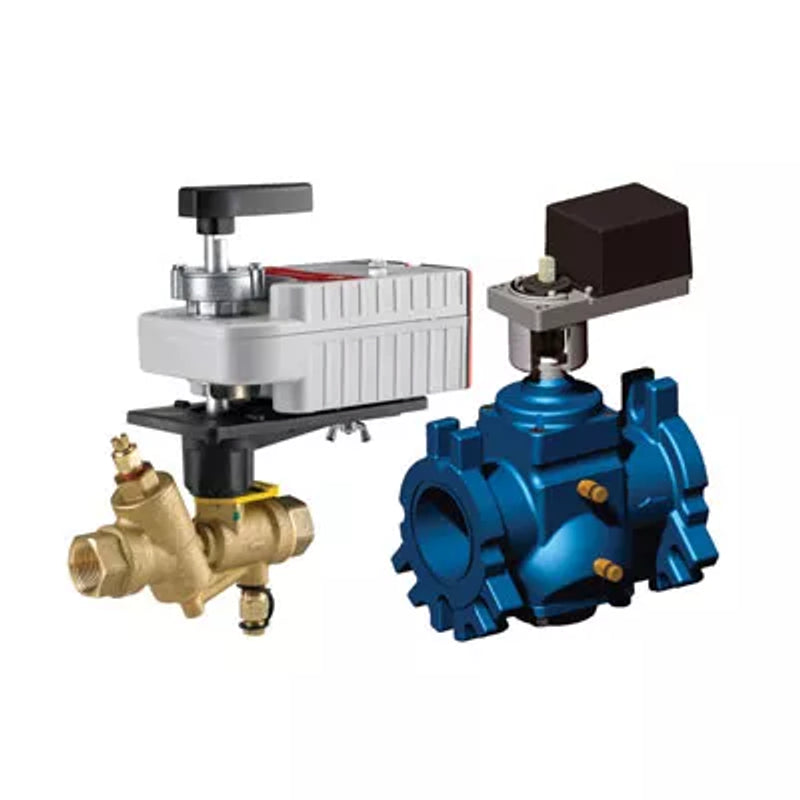

Honeywell VRN2G8PX6202 Pressure Independent Control Valve

Product Description

The Honeywell VRN2G8PX6202 Pressure Independent Control Valve is a highly effective solution for flow regulation in hydronic systems. It combines flow and temperature control in one unit, ensuring stability even when pressure fluctuates.

• Integrated pressure control cartridge for efficient flow balancing.
• Compatible with sizes from 1/2 inch to 3 inches female NPT.
• Ideal for hot or chilled water with a tolerance for up to 50% glycol solutions.

Product Highlights

This control valve maintains consistent performance under varying conditions, making it ideal for HVAC applications.

Product Information

Standard Information

• Manufacturer: Honeywell
• MPN: VRN2G8PX6202

Technical Specifications

• Type: Control Valve
• Connection: NPT
• Pattern: 2-way
• GPM: 85 GPM
• Control Signal: Analog, Floating
• Body Style: Two-way ball valve, straight-through flow
• Body Pressure Rating: 360 psi at 250°F
• Controlled Medium: Water or Glycol solutions up to 50%
• Medium Temperature Range: -22°C to 250°F
• Close-off pressure: 100 psid
• Body: Forged brass
