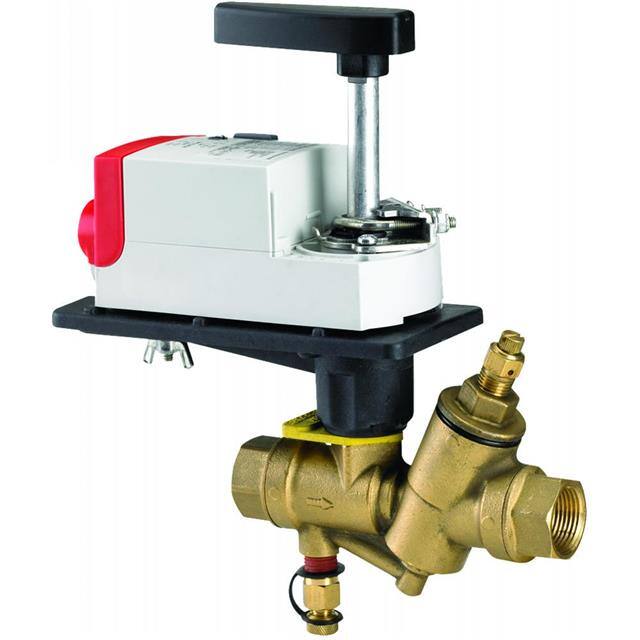

HONEYWELL VRN2G5SX5002 Pressure Independent Control Valve Assembly

Product Description

The Honeywell VRN2G5SX5002 is a two-way pressure independent control valve assembly. This assembly is designed to keep a steady flow of hot or chilled water in closed-loop HVAC systems, including solutions with up to fifty percent glycol. The valve features a differential pressure regulator to maintain fluid flow that is not affected by changes in supply pressure. It is compatible with both Honeywell non-spring return and spring return direct coupled actuators.

• Maintains constant flow of hot or chilled water with glycol solutions up to fifty percent.
• Features a differential pressure regulator for a constant pressure drop.
• Works with Honeywell non-spring return or spring return direct coupled actuators.

Product Highlights

This valve ensures efficient operation in HVAC systems while allowing for flexibility with different media types.

Product Information

Standard Information

• Manufacturer: Honeywell
• Type: Control Valve

Technical Specifications

• Body Style: 2-Way ball valve, straight-through flow, full port with patented flow control insert.
• Body Pressure Rating: 360 PSI at 250F.
• Controlled Medium: Water or glycol solutions up to fifty percent. Not for combustible gases, oil, or steam.
• Medium Temperature Range: From minus twenty-two degrees Fahrenheit to two hundred fifty degrees Fahrenheit.
• Close-off Pressure: 100 PSID.
• Connection Size: Two point five inches NPT.
• Flow Rate: 70 GPM.
