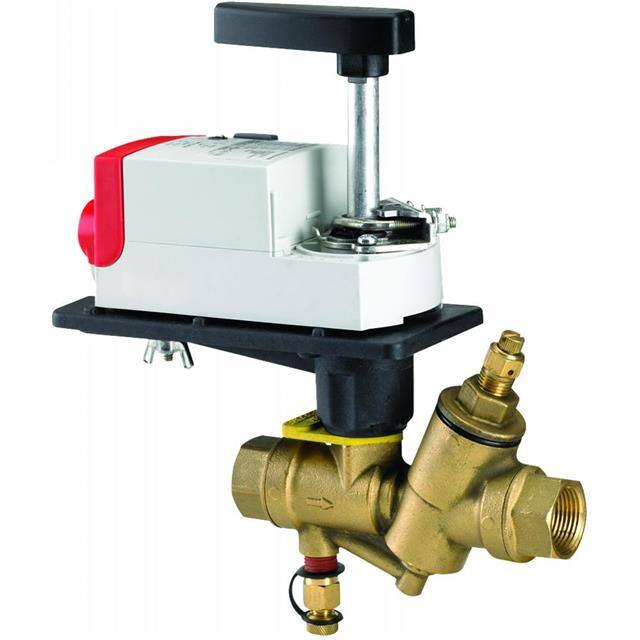

Honeywell VRN2G4PX5002 Pressure Independent Control Valve and Actuator Assembly

Product Description

The Honeywell VRN2G4PX5002 is a pressure independent control valve and actuator assembly designed for HVAC systems. This assembly ensures a constant flow of hot or chilled water in closed-loop systems, handling up to fifty percent glycol solutions. Its integrated differential pressure regulator enables fluid flow to remain stable regardless of changes in supply pressure.

• Maintains constant flow in HVAC systems.
• Features an integrated differential pressure regulator.
• Compatible with Honeywell direct coupled actuators.

Product Highlights

The device is essential for effective temperature control in heating and cooling applications, ensuring system efficiency.

Product Information

Standard Information

• Brand: Honeywell
• MPN: VRN2G4PX5002

Technical Specifications

• Type: Control Valve Assembly
• Connection: NPT
• Supply Voltage (Nominal): 24 VAC
• Pattern: 2-Way
• Size: 2-1/2 inches
• GPM: 65 GPM
• Control Signal: Analog, Floating
• Trim Material: Stainless Steel
• Body Style: 2-Way ball valve, straight-through flow, full port with patented flow control insert.
• Body Pressure Rating: 360 PSI @ 250F (121C)
• Controlled Medium: Water or Glycol solutions up to 50%. Not suitable for combustible gases, oil, or steam.
• Medium Temperature Range: Negative twenty-two F to 250 F
• Close-off Pressure: 100 PSID
• Product Status: Active
