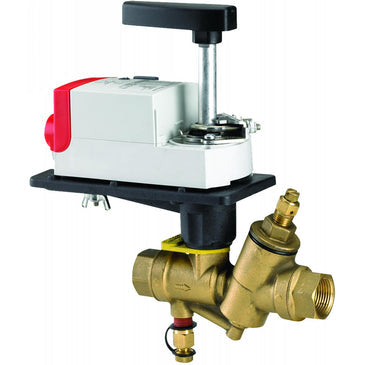

Honeywell VRN2FTPXD000 Pressure Independent Control Valve Assembly

Product Description

The Honeywell VRN2FTPXD000 is a pressure independent control valve assembly intended for HVAC systems. It is designed to maintain a consistent flow of hot or chilled water while accommodating up to fifty percent glycol solutions in closed-loop systems. This valve effectively manages flow, ensuring stability during pressure changes. Equipped with a two-way ball valve design, it features NPT connections and includes an electric actuator for modulating control. The assembly integrates flow and temperature control, automatically adjusting flow to sustain temperature levels even when pressure fluctuates. It is optimized for use with Honeywell direct coupled actuators.

• Maintains constant flow in HVAC systems despite pressure variations.
• Suitable for hot or chilled water with up to fifty percent glycol solutions.
• Features a two-way ball valve design with NPT connections.

Product Highlights

The Honeywell VRN2FTPXD000 assembly provides reliable performance for HVAC applications, ensuring temperature stability and flow consistency in various environments.

Product Information

Standard Information

• Brand: Honeywell
• MPN: VRN2FTPXD000

Technical Specifications

• Type: Assembly
• Connection: NPT
• Size: 2 inches
• Pattern: 2-way
• GPM: 40 GPM
• Supply Voltage (Nominal): 24 VAC
• Control Signal: Analog, Floating
• Trim Material: Stainless Steel
• Body Style: 2-Way ball valve, straight-through flow, full port with patented flow control insert
• Body Pressure Rating: 360 PSI at 250F (121C)
• Controlled Medium: Water or glycol solutions up to 50%. Not suitable for combustible gases, oil, or steam
• Medium Temperature Range: -22F to 250F
• Close-off Pressure: 100 PSID
