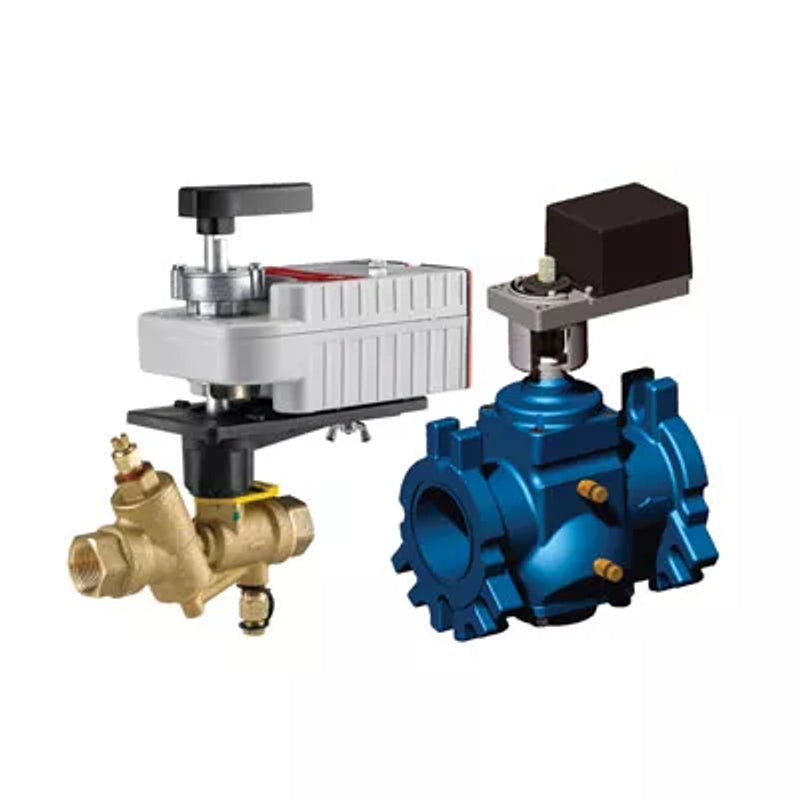

Honeywell VRN2FRPX9202 Pressure Independent Control Valve Assembly

Product Description

The Honeywell VRN Series valve, MPN VRN2FRPX9202, is a pressure-regulated control valve assembly used in hydronic systems. It automatically regulates flow to maintain a consistent temperature during pressure fluctuations. This valve features an integrated pressure control cartridge that assists with flow balancing. It is compatible with Honeywell direct-coupled actuators and suitable for both water and glycol solutions.

• Valve size: two inch NPT connection
• Flow rate: thirty GPM
• Suitable for hot or chilled water with up to fifty percent glycol solutions

Product Highlights

The Honeywell VRN2FRPX9202 is designed for reliable performance in varying conditions.

Product Information

Standard Information

• Manufacturer: Honeywell
• MPN: VRN2FRPX9202

Technical Specifications

• Type: Assembly
• Connection: NPT
• Input Voltage: 120 VAC, 240 VAC
• Pattern: Two-way
• Size: 2 inches
• GPM: 30 GPM
• Control Signal: Two Position
• Valve Type: Dynamic Pressure Regulated Control Valve
• Body Style: Two-way ball valve, straight-through flow, full port with patented flow control insert
• Controlled Medium: Water or Glycol solutions up to fifty percent; not suitable for combustible gases, oil or steam
• Medium Temperature Range: 22 degrees Fahrenheit to 250 degrees Fahrenheit (-30 degrees Celsius to 121 degrees Celsius)
• Body Pressure Rating (maximum): 360 psi (2500 kPa) at 250 degrees Fahrenheit (121 degrees Celsius)
• Close-off pressure: 100 psid
• Flow Characteristics: Equal percentage with flow control insert
• Body: Forged brass (ASTM B283)
• Trim Material: Stainless Steel
• Flow Optimizer: Laser-milled, glass-reinforced Noryl
• Trim (ball and stem): Nickel-chrome plated brass or stainless steel
• Stem Seals: EPDM O-ring and Teflon bearings
• Ball Seals: Reinforced Teflon seals with EPDM O-rings
• Regulator: Hydrogenated acrylonitrile-butadiene rubber rolling diaphragm in stainless steel housing
• Compatible Actuators: Non-Spring Return: ML6161, ML7161, MN6105, MN7505; Spring Return: MS6105, MS7505, MS8105; Minimum Torque Required: 35 lb-in (4 Nm) up to 3 inches (DN80)
• Warranty: 1 year on valves, 5 years on actuators
• Product Status: Active
