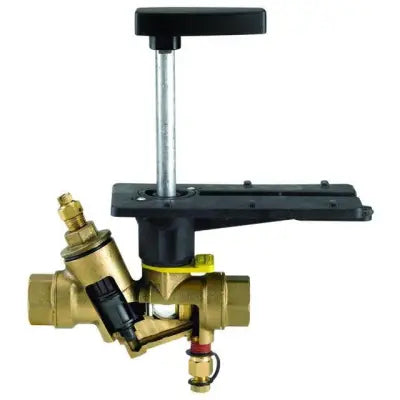

Honeywell VRN2ESSX0000 Pressure Independent Control Valve

Product Description

The Honeywell VRN2ESSX0000 is a pressure independent control valve ideal for managing flow and temperature in hydronic systems. This two-way valve maintains consistent temperature despite changes in piping pressures. It includes a pressure control cartridge, enhancing flow balancing.

• Valve Size: One and a half inches NPT connection.
• Maximum Flow Rate: Thirty-five gallons per minute.
• Trim Material: Stainless steel for durability.

Product Highlights

This valve is suitable for water and glycol solutions up to fifty percent concentration.

Product Information

Standard Information

• Manufacturer: Honeywell
• MPN: VRN2ESSX0000

Technical Specifications

• Type: Control Valve
• Connection: NPT
• Pattern: Two-way
• Size: One and a half inches
• GPM: Thirty-five gallons per minute
• Body Style: Two-way ball valve, straight-through flow, full port with patented flow control insert
• Pipe Size: Half-inch to three inches with female NPT pipe fittings
• Body Pressure Rating (maximum): Three hundred sixty psi at two hundred fifty degrees Fahrenheit
• Controlled Medium: Water or glycol solutions (not for combustible gases, oil, or steam)
• Medium Temperature Range: Minus twenty-two degrees Celsius to two hundred fifty degrees Fahrenheit
• Maximum Differential Pressure: One gallon per minute (half-inch valve) to ninety-five gallons per minute (three-inch valve)
• Close-off pressure: One hundred psid
• Flow Characteristics: Equal percentage with flow control insert
• Body: Forged brass
• Flow Optimizer: Laser-milled, glass-reinforced Noryl
• Ball and Stem Trim: Nickel-chrome plated brass or stainless steel
• Stem Seals: EPDM O-ring and Teflon bearings
• Ball Seals: Reinforced Teflon seals with EPDM O-rings
• Regulator: Hydrogenated acrylonitrile-butadiene rubber rolling diaphragm in stainless steel housing
• Compatible Actuators: Non-Spring Return: ML6161, ML7161, MN6105*, MN7505*; Spring Return: MS6105, MS7505*, MS8105; other specifics apply to certain sizes
• Minimum Torque Required: Thirty-five lb-in for three inches; eighteen lb-in for smaller sizes
• Warranty: One year on valves, five years on actuators
• Product Status: Active
