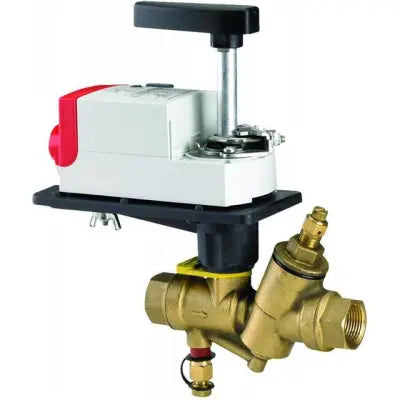

Honeywell VRN2EMSX4000 Pressure Independent Control Valve

Product Description

The Honeywell VRN2EMSX4000 is a pressure-regulated control valve designed for hydronic systems. This valve integrates flow and temperature control to maintain consistent temperatures during pressure changes. It connects easily with NPT fittings and supports both hot and chilled water. The valve is compatible with Honeywell direct-coupled actuators for robust performance.

• Integrated pressure control for flow balancing.
• Suitable for water or glycol solutions up to fifty percent.
• Operates with a floating, two-position control signal.

Product Highlights

This valve is ideal for managing flow in heating and cooling systems, ensuring efficient operation and temperature stability.

Product Information

Standard Information

• Manufacturer: Honeywell
• Model Number: VRN2EMSX4000

Technical Specifications

• Type: Control Valve
• Connection: NPT
• Size: One and a half inches
• Pattern: Two-way
• GPM: Ten GPM
• Trim Material: Stainless Steel
• Supply Voltage: Twenty-four VAC
• Control Signal: Floating, two position
• Valve Type: Dynamic pressure regulated control valve
• Body Style: Two-way ball valve, straight-through flow, full port
• Pipe Size: One half inch to three inches with female NPT fittings
• Body Pressure Rating: Three hundred sixty psi
• Controlled Medium: Water or glycol solutions
• Medium Temperature Range: Negative twenty-two degrees Celsius to two hundred fifty degrees Fahrenheit
• Close-off Pressure: One hundred psid
• Flow Characteristics: Equal percentage with flow control insert
• Body: Forged brass
• Flow Optimizer: Laser-milled
• Trim: Nickel-chrome plated brass
• Stem Seals: EPDM O-ring and Teflon bearings
• Ball Seals: Reinforced Teflon seals
• Regulator: Hydrogenated acrylonitrile-butadiene rubber diaphragm
• Compatible Actuators: ML6161, ML7161
• Minimum Torque Required: Thirty-five lb-in
• Warranty: One year on valves, five years on actuators
• Product Status: Active
• Packaging: Box
