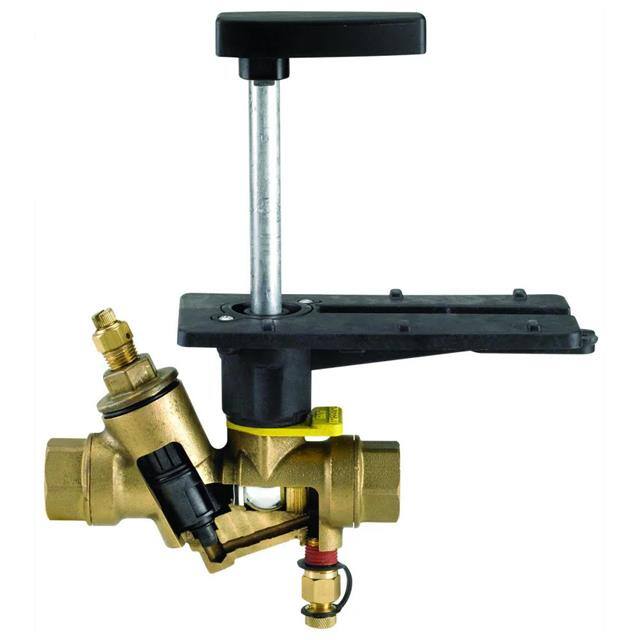

Honeywell VRN2E9SX0000 Pressure Independent Control Valve

Product Description

The Honeywell VRN2E9SX0000 is a pressure independent control valve that integrates flow and temperature control for effective management of hydronic systems. This two-way valve features a stainless steel trim and is designed for controlling hot or chilled water with up to fifty percent glycol solutions. It effectively maintains temperature by adjusting flow in response to pressure changes. The valve connects with a one and a half inch NPT thread and can handle a flow rate of ninety-five gallons per minute.

• Features a one and a half inch NPT connection.
• Designed for a flow rate of ninety-five gallons per minute.
• Suitable for water and glycols up to fifty percent.

Product Highlights

This valve provides reliable performance in temperature management for hydronic applications.

Product Information

Standard Information

• Brand: Honeywell
• MPN: VRN2E9SX0000

Technical Specifications

• Type: Control Valve
• Connection: NPT
• Trim Material: Stainless Steel
• Pattern: 2-way
• Size: 1-1/2 inches
• GPM: 95 gallons per minute
• Controlled Medium: Water or Glycol solutions up to 50%
• Temperature Range: -22 °C to 250 °F
• Close-off Pressure: 100 psid
