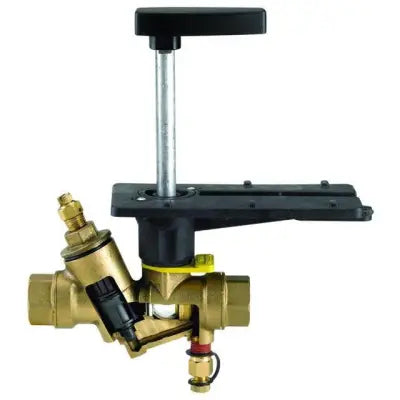

Honeywell VRN2E7SX0000 Pressure Independent Control Valve

Product Description

The Honeywell VRN2E7SX0000 is a pressure independent control valve made for hydronic systems. This product features a robust two-way valve design with stainless steel trim. It automatically adjusts flow rates to keep the temperature constant, even with changing pressures in the piping system.

• NPT connections simplify installation.
• Compatible with hot or chilled water, including solutions with up to fifty percent glycol.
• Includes a differential pressure regulator to ensure a consistent pressure drop.

Product Highlights

This valve supports precise temperature control and flow regulation.

Product Information

Standard Information

• Manufacturer: Honeywell
• MPN: VRN2E7SX0000

Technical Specifications

• Type: Control Valve
• Valve Type: Dynamic Pressure Regulated Control Valve
• Connection: NPT
• Pattern: Two-way
• Size: One and a half inches
• GPM: Eighty GPM
• Trim Material: Stainless Steel
• Body Style: Two-way ball valve, straight-through flow, full port with flow control insert
• Pipe Size: One half inch to three inches with female NPT fittings
• Body Pressure Rating (maximum): Three hundred sixty psi at two hundred fifty degrees Fahrenheit
• Controlled Medium: Water or glycol solutions up to fifty percent
• Medium Temperature Range: Minus twenty-two degrees Celsius to two hundred fifty degrees Fahrenheit
• Maximum Differential Pressure: One to ninety-five GPM based on valve size
• Close-off Pressure: One hundred psid
• Flow Characteristics: Equal percentage with flow control insert
• Body: Forged brass
• Flow Optimizer: Laser-milled, glass-reinforced Noryl
• Trim (ball and stem): Nickel-chrome plated or stainless steel
• Stem Seals: EPDM O-ring and Teflon bearings
• Ball Seals: Reinforced Teflon seals with EPDM O-rings
• Regulator: Hydrogenated acrylonitrile-butadiene rubber rolling diaphragm in stainless steel housing
• Compatible Actuators: Non-Spring and Spring Return options
• Minimum Torque Required: Thirty-five lb-in up to three inches
• Warranty: One year on valves, five years on actuators
• Packaging: Box
• Product Status: Active
• RoHS Status: RoHS non-compliant
• REACH: REACH Affected
