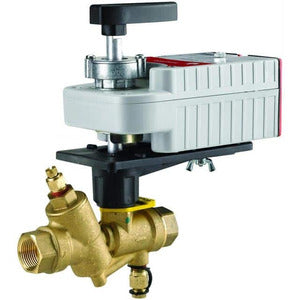

Honeywell VRN2E2SX8100 Pressure Independent Control Valve

Product Description

The Honeywell VRN2E2SX8100 is a pressure-independent control valve designed for efficient flow and temperature management in hydronic systems. This valve operates automatically to regulate flow while maintaining temperature during pressure changes. It features a pressure control cartridge that facilitates flow balancing and is suitable for use with hot or chilled water, as well as glycol solutions up to 50% concentration. The valve provides female NPT connections, ensuring easy installation.

• Pressure independent control for efficient operation.
• Compatible with flows from 1 to 95 GPM.
• Robust construction with stainless steel components.

Product Highlights

This valve is designed for versatility in both residential and commercial applications, ensuring consistent performance in heating and cooling systems.

Product Information

Standard Information

• Manufacturer Part Number: VRN2E2SX8100
• Type: Valve Only

Technical Specifications

• Connection: NPT
• Trim Material: Stainless Steel
• Pattern: 2-way
• Size: 1-1/2 in
• GPM: 55 GPM
• Valve Type: Dynamic Pressure Regulated Control Valve
• Body Style: Two-way ball valve, straight-through flow, full port
• Pipe Size: 1/2 to 3 inches with female NPT fittings
• Body Pressure Rating: 360 psi at 250°F (121°C)
• Controlled Medium: Water or Glycol solutions
• Medium Temperature Range: -22°F to 250°F
• Maximum Differential Pressure: 1 GPM (1/2 inch valve) to 95 GPM (3 inch valve)
• Close-off Pressure: 100 psid
• Flow Characteristics: Equal percentage with flow control insert
• Body: Forged brass (ASTM B283)
• Flow Optimizer: Laser-milled, glass-reinforced Noryl
• Trim: Nickel-chrome plated brass or stainless steel
• Stem Seals: EPDM O-ring and Teflon bearings
• Ball Seals: Reinforced Teflon seals with EPDM O-rings
• Regulator: Hydrogenated acrylonitrile-butadiene rubber diaphragm
• Compatible Actuators: ML6161, ML7161, MN6105, MN7505
• Minimum Torque Required: 35 lb-in up to 3 inches; 18 lb-in up to 3/4 inches
• Warranty: 1 year on valves, 5 years on actuators
• Package: Box
