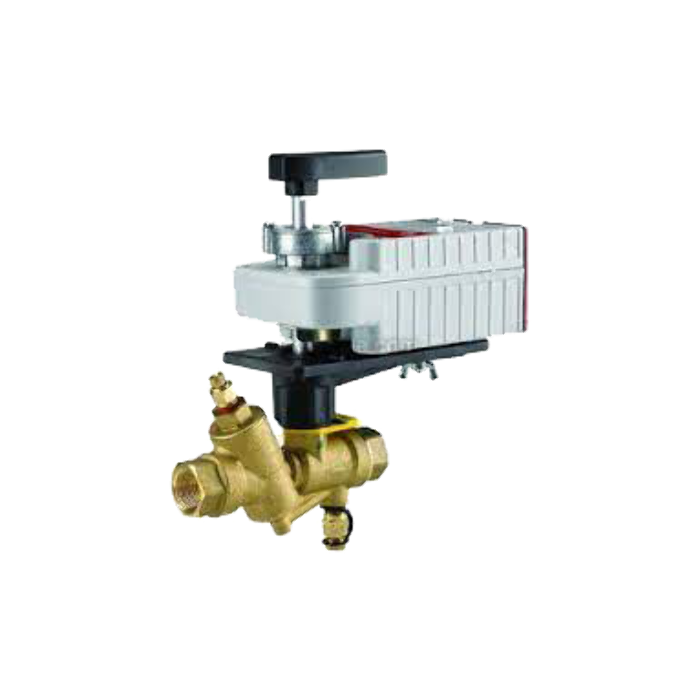

HONEYWELL VRN2DSPXE101 Pressure Independent Control Valve Assembly

Product Description

The HONEYWELL VRN2DSPXE101 is a pressure independent control valve assembly designed for effective flow management in various applications. This assembly includes a reliable electric actuator and operates as a 2-way valve with a 1-1/4 inch NPT connection. The unit provides a flow rate of thirty-five gallons per minute. The valve features a durable plated brass trim and is equipped with a direct coupled actuator (DCA) profile, ensuring efficient operation in modulating control scenarios.

• 2-way valve with a 1-1/4 inch NPT connection
• Flow rate of thirty-five gallons per minute
• Operates on twenty-four volts alternating current

Product Highlights

This valve is designed for modulating control and includes a fail-safe open functionality. A one-meter cable is included for easy installation, and it operates under a voltage of twenty-four VAC, making it suitable for chilled or hot water applications with up to fifty percent glycol. Note that it is not recommended for use with steam or fuels.

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer Part Number: VRN2DSPXE101

Technical Specifications

• Connection Size: 1-1/4 inch NPT
• Valve Type: 2-Way
• Flow Rate: 35 GPM
• Trim: Plated Brass
• Profile: DCA
• Actuation: Electric Actuator
• Fail-Safe: Fail-Safe Open
• Cable Length: 1 Meter
• Voltage: 24 VAC
• Service: Chilled Or Hot Water With Up To 50% Glycol; Not For Use With Steam Or Fuels
• Flow Characteristic: Equal Percentage With Flow Control Insert
• Operating Conditions: 14 F To 131 F (-10 C To 55 C)
• Close-Off Pressure: 100 psid
• Power Consumption: 2 VA Holding, 4 VA Driving
• Electrical Connection: Cable
• Housing: NEMA 2, IP54
