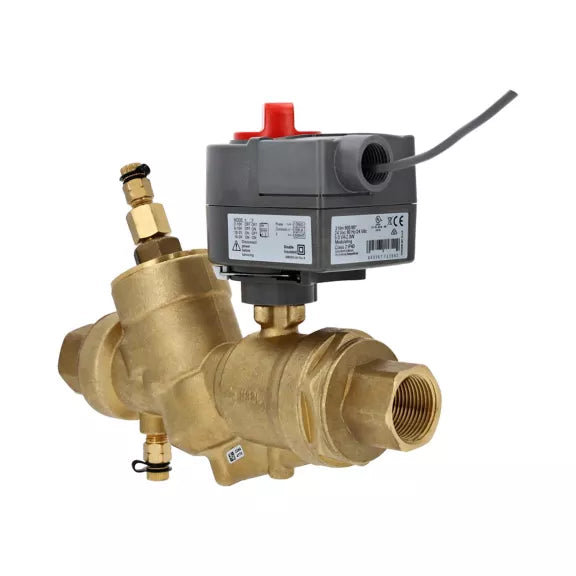

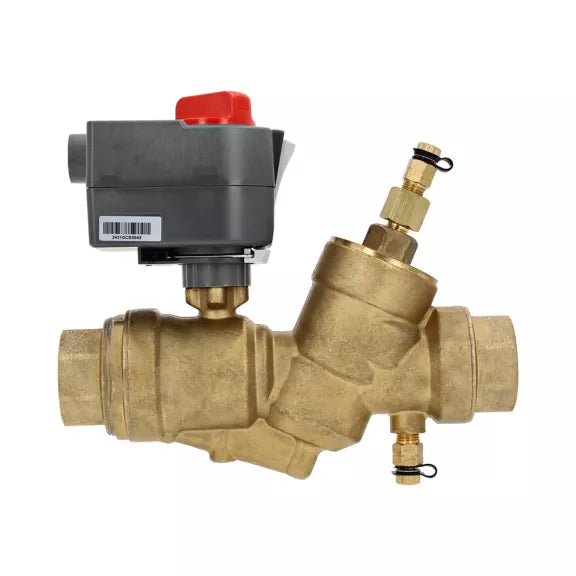

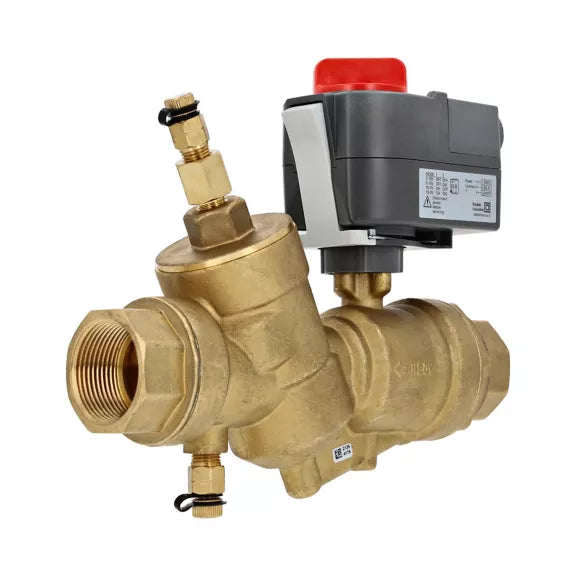

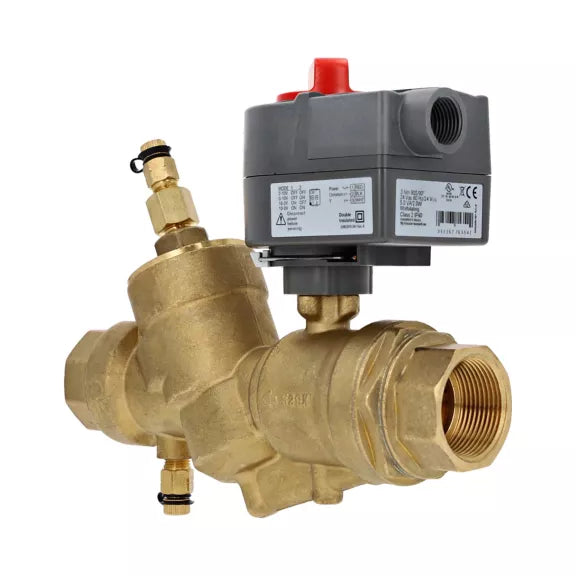

Honeywell VRN2DMPA3001 Pressure Independent Control Valve with Electric Actuator

Product Description

The Honeywell VRN2DMPA3001 is a pressure independent control valve featuring an electric actuator. It regulates the flow of hot or chilled water, accommodating up to 50% glycol in closed-loop HVAC systems. This 2-way valve includes a pressure control cartridge that balances flow and temperature, essential for environments with fluctuating piping pressures. The valve assembly can come with or without actuators pre-installed.

• NPT connection: 1-1/4 inches
• Flow rate: 10 GPM
• Supply voltage: 24 VAC

Product Highlights

The valve ensures efficient flow control in HVAC applications, optimizing energy usage and system reliability.

Product Information

Standard Information

• Manufacturer: Honeywell
• MPN: VRN2DMPA3001

Technical Specifications

• Type: Control Valve
• Connection: NPT
• Supply Voltage (Nominal): 24 VAC
• Trim Material: Stainless Steel
• Pattern: 2-way
• Size: 1-1/4 inches
• GPM: 10 GPM
• Control Signal: Analog
