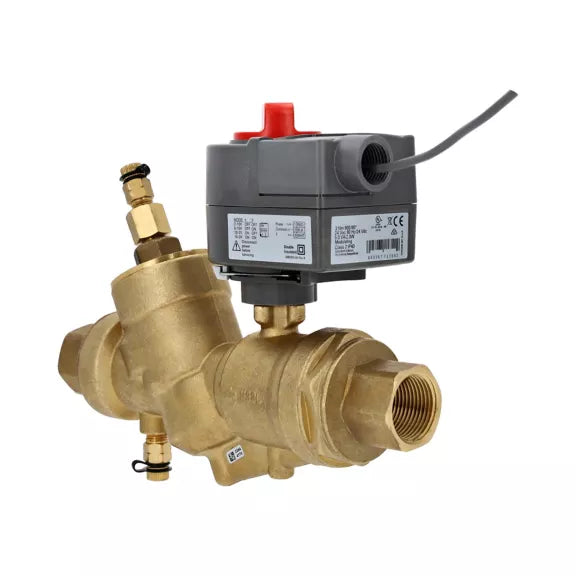

Honeywell VRN2CPPA3001 Pressure Independent Control Valve

Product Description

The Honeywell VRN2CPPA3001 is a pressure independent control valve suitable for HVAC systems. It keeps a consistent flow of hot or chilled water, with the capability to handle 50% glycol solutions in closed-loop systems.

• Maintains constant flow in HVAC systems.
• Works with hot or chilled water and up to 50% glycol solutions.
• Includes a pressure control cartridge for flow balancing and temperature regulation.

Product Highlights

This valve is constructed from forged brass with stainless steel trim. It features a one-inch NPT connection and offers a flow rate of 20 GPM.

Product Information

Standard Information

• Brand: Honeywell
• Type: Assembly

Technical Specifications

• Valve Type: Dynamic Pressure Regulated Control Valve
• Control Type: Pressure Independent
• Connection: NPT
• Size: 1 in
• GPM: 20 GPM
• Pattern: 2-way
• Body Pressure Rating (maximum): 360 psi at 250°F
• Controlled Medium: Water or Glycol solutions up to 50%
• Medium Temperature Range: -22°C to 250°F
• Minimum Torque Required: 35 lb-in up to 3inch and 18 lb-in for smaller sizes
• Supply Voltage (Nominal): 24 VAC
