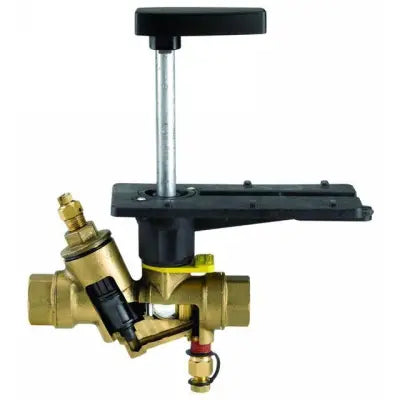

Honeywell VRN2CPPA0000 Pressure Independent Control Valve 1 in NPT 2-Way 20 GPM

Product Description

The Honeywell VRN2CPPA0000 is a pressure independent control valve designed for hydronic systems. This valve automatically manages flow to maintain temperature during pressure changes. The valve features a two-way configuration with a one-inch NPT connection and is capable of handling up to 20 gallons per minute.

• Size: 1 inch NPT
• Flow Rate: 20 GPM
• Trim Material: Brass

Product Highlights

This valve ensures effective flow and temperature control in hydronic installations.

Product Information

Standard Information

• Manufacturer: Honeywell
• Model Number: VRN2CPPA0000

Technical Specifications

• Type: Control Valve
• Valve Type: Dynamic Pressure Regulated Control Valve
• Connection: NPT
• Pattern: 2-way
• Pipe Size: 1/2 inches to 3 inches with female NPT fittings
• Body Pressure Rating (maximum): 360 psi (2500 kPa) at 250°F (121°C)
• Controlled Medium: Water or Glycol solutions up to 50%; not suitable for combustible gases, oil, or steam
• Medium Temperature Range: -22°C to 250°F (-30°C to 121°C)
• Maximum Differential Pressure: 1 GPM (1/2 in valve) to 95 GPM (3 in valve)
• Body: Forged brass (ASTM B283)
