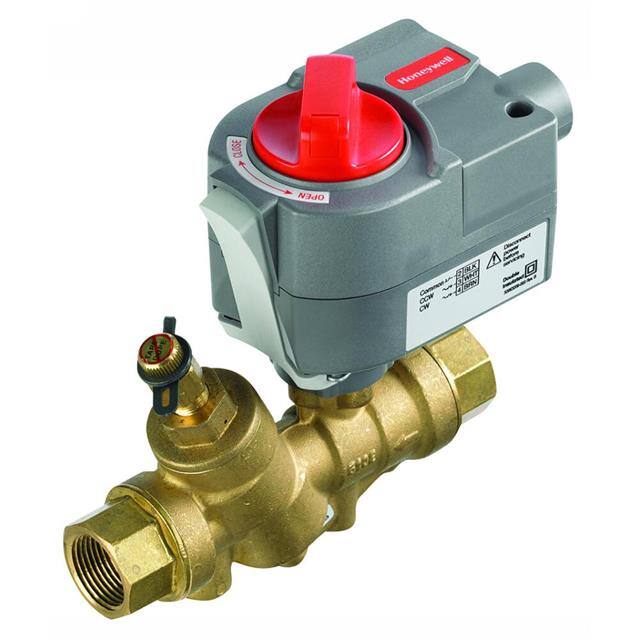

Honeywell VRN2CMPA3001 Pressure Independent Control Valve

Product Description

The Honeywell VRN2CMPA3001 Pressure Independent Control Valve is designed to integrate flow and temperature regulation in hydronic systems. This valve automatically adjusts flow to maintain temperature even with varying pressure conditions. It comes equipped with an integrated pressure control cartridge for effective flow management.

• Two-way valve with a one-inch NPT connection.
• Rated for a flow rate of ten GPM.
• Includes a modulating fail-in-place electric actuator with a one-meter cable.

Product Highlights

This valve is suitable for both hot and chilled water systems, accommodating glycol solutions up to fifty percent.

Product Information

Standard Information

• Brand: Honeywell
• MPN: VRN2CMPA3001

Technical Specifications

• Type: Control Valve
• Connection: NPT
• Pattern: 2-way
• Size: 1 inch
• GPM: 10 GPM
• Body Material: Forged brass (ASTM B283)
• Trim Material: Stainless Steel
• Supply Voltage: 24 VAC
• Control Signal: Analog
• Valve Type: Dynamic Pressure Regulated Control Valve
• Body Style: Two-way ball valve, straight-through flow, full port with patented flow control insert
• Pipe Size: 1/2 inch to 3 inch with female NPT pipe fittings
• Body Pressure Rating (maximum): 360 psi (2500 kPa) at 250°F (121°C)
• Controlled Medium: Water or glycol solutions up to fifty percent; not suitable for combustible gases, oil, or steam
• Medium Temperature Range: -22°C to 250°F (-30°C to 121°C)
• Maximum Differential Pressure: 1 GPM (1/2 inch valve) to 95 GPM (3 inch valve)
• Close-off pressure: 100 psid
• Flow Characteristics: Equal percentage with flow control insert
• Flow Optimizer: Laser-milled, glass-reinforced Noryl
• Trim (ball and stem): Nickel-chrome plated brass or stainless steel
• Stem Seals: EPDM O-ring and Teflon bearings
• Ball Seals: Reinforced Teflon seals, with EPDM O-rings
• Regulator: Hydrogenated acrylonitrile-butadiene rubber rolling diaphragm in stainless steel housing
• Compatible Actuators: Non-Spring Return: ML6161, ML7161, MN6105*, MN7505*; Spring Return: MS6105, MS7505*, MS8105; MS6103, MS7503, MS8103 only at 1/2 inch or 3/4 inch (DN15 ~ DN 20)
• Minimum Torque Required: 35 lb-in (4 Nm) up to 3 inch (DN80), 18 lb-in (2 Nm) up to 3/4 inch (and 1 inch up to 9 GPM)
• Warranty: 1 year on valves, 5 years on actuators * These actuators available factory-installed.
• Product Status: Active
