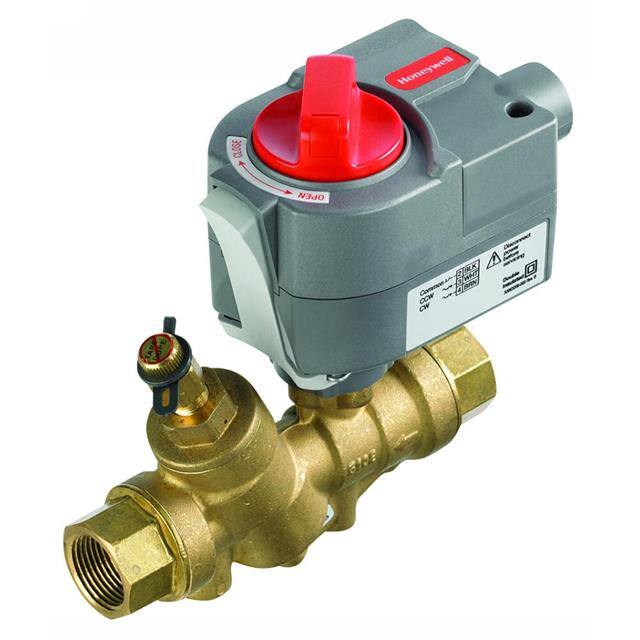

Honeywell VRN2CLPA1000 Pressure Independent Control Valve

Product Description

The Honeywell VRN2CLPA1000 is a control valve designed for hydronic systems. It regulates flow and maintains temperature under varying pressures. This valve uses integrated pressure control technology.

• Features a one inch NPT connection.
• Handles water or glycol solutions with up to fifty percent concentration.
• Maximum flow rate of nine gallons per minute.

Product Highlights

This valve is suitable for managing flow in both heating and cooling systems.

Product Information

Standard Information

• Brand: Honeywell
• MPN: VRN2CLPA1000

Technical Specifications

• Type: Control Valve
• Connection: NPT
• Size: 1 inch
• Max GPM: 9 GPM
• Supply Voltage: 24 VAC
• Control Signal: Floating, Two Position
• Valve Type: Dynamic Pressure Regulated Control Valve
• Body Style: Two-way ball valve, straight-through flow, full port
• Body Pressure Rating: 360 psi at 250°F
• Controlled Medium: Water or glycol solutions up to 50%
• Medium Temperature Range: -22°C to 250°F
• Close-off Pressure: 100 psid
• Flow Characteristics: Equal percentage with flow control insert
• Body: Forged brass
• Flow Optimizer: Laser-milled, glass-reinforced Noryl
• Trim: Nickel-chrome plated brass or stainless steel
• Stem Seals: EPDM O-ring and Teflon bearings
• Ball Seals: Reinforced Teflon seals with EPDM O-rings
• Regulator: Hydrogenated rubber diaphragm in stainless steel housing
• Minimum Torque Required: 35 lb-in up to 3 inch, 18 lb-in up to 3/4 inch
• Warranty: 1 year on valves, 5 years on actuators
