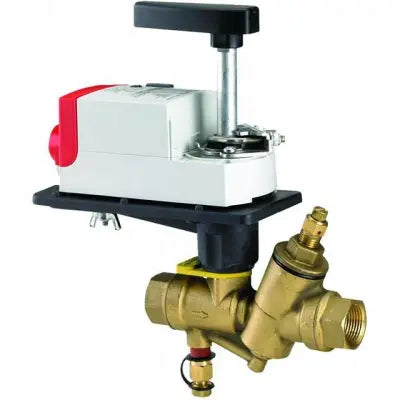

Honeywell VRN2CGPXC000 Pressure Independent Control Valve Assembly

Product Description

The Honeywell VRN2CGPXC000 is a pressure independent control valve assembly that regulates flow and temperature in hydronic systems. This assembly maintains a steady temperature by automatically adjusting the flow within each circuit, accommodating fluctuations in piping pressure. It features an integrated pressure control cartridge for flow balancing and control.

• 2-way ball valve with full port for straight-through flow
• Compatible with pipe sizes from one half inch to three inches with female NPT fittings
• Supports Honeywell N05/S05-series direct coupled actuators

Product Highlights

This valve is suitable for water or glycol solutions up to fifty percent concentration, ensuring reliable operation across various applications.

Product Information

Standard Information

• Manufacturer: Honeywell
• MPN: VRN2CGPXC000

Technical Specifications

• Type: Control Valve
• Connection: NPT
• Control Signal: Floating, Two Position
• Maximum Pressure Rating: 360 psi (2500 kPa) at 250°F (121°C)
• Temperature Range: -22°C to 250°F (-30°C to 121°C)
• Body Material: Forged brass (ASTM B283)
• Trim Material: Stainless Steel
• Input Voltage: 24 VAC
