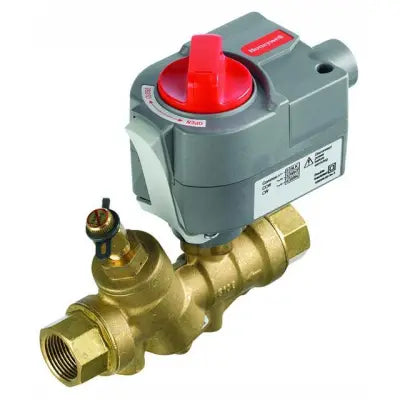

Honeywell VRN2CGPA2001 Pressure Independent Control Valve

Product Description

The Honeywell VRN2CGPA2001 is a pressure independent control valve that delivers efficient flow and temperature management in hydronic systems. This two-way valve adjusts flow automatically to maintain desired temperatures, even when piping pressures vary. It includes a built-in pressure control cartridge that balances and controls flow effortlessly. With one-inch FNPT connections, it works seamlessly with Honeywell direct-coupled actuators.

• Features female NPT connections
• Compatible with hot or chilled water including up to fifty percent glycol solutions
• Includes a differential pressure regulator to ensure constant pressure drop

Product Highlights

This valve is essential for maintaining system efficiency in various water heating and cooling applications.

Product Information

Standard Information

• Manufacturer: Honeywell
• Connection: NPT

Technical Specifications

• Type: Control Valve
• Size: 1 inch
• Pattern: Two-way
• GPM: 5 GPM
• Supply Voltage: 24 VAC
• Control Signal: Floating, Two Position
• Body Style: Two-way ball valve, straight-through flow, full port with flow control insert
• Pipe Size: 1/2 to 3 inches with female NPT pipe fittings
• Maximum Body Pressure Rating: 360 psi
• Controlled Medium: Water or glycol solutions up to 50%
• Medium Temperature Range: -22 to 250 degrees F
• Maximum Differential Pressure: 1 gpm (1/2 inch valve) to 95 gpm (3-inch valve)
• Close-off Pressure: 100 psid
• Flow Characteristics: Equal percentage with flow control insert
• Body Material: Forged brass
• Flow Optimizer: Laser-milled, glass-reinforced Noryl
• Trim Material: Nickel-chrome plated brass or stainless steel
• Stem Seals: EPDM O-ring and Teflon bearings
• Ball Seals: Reinforced Teflon seals with EPDM O-rings
• Regulator: Hydrogenated acrylonitrile-butadiene rubber rolling diaphragm
• Compatible Actuators: ML6161, ML7161, MN6105, MN7505, MS6105, MS7505, MS8105
• Minimum Torque Required: 35 lb-in to 3 inches
• Warranty: 1 year on valves, 5 years on actuators
