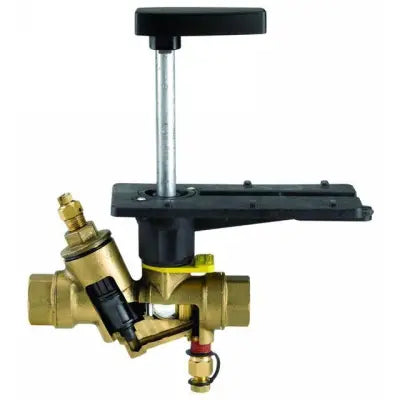

Honeywell VRN2CGPA0000 Pressure Independent Control Valve

Product Description

The Honeywell VRN2CGPA0000 is a pressure independent control valve designed for hydronic systems. It integrates flow and temperature control, maintaining consistent temperatures even during pressure fluctuations. This valve features an integrated pressure control cartridge allowing for efficient flow balancing.

• Sizes range from half inch to three inches with female NPT connections.
• Includes a differential pressure regulator to ensure a constant pressure drop.
• Provides equal percentage flow characteristics through a patented flow control ball insert.

Product Highlights

This product is ideal for controlling hot or chilled water, as well as up to fifty percent glycol solutions in hydronic heating and cooling applications.

Product Information

Standard Information

• Manufacturer: Honeywell
• Model Number: VRN2CGPA0000

Technical Specifications

• Type: Control Valve
• Connection: NPT
• Trim Material: Brass
• Pattern: Two-way
• Size: One inch
• Flow Rate: 5 GPM
• Valve Type: Dynamic Pressure Regulated Control Valve
• Body Style: Two-way ball valve, straight-through flow, full port with patented flow control insert
• Pipe Size: Half inch to three inches with female NPT fittings
• Body Pressure Rating: Maximum 360 psi (2500 kPa) at 250°F (121°C)
• Controlled Medium: Water or glycol solutions up to fifty percent; not suitable for combustible gases, oil or steam
• Medium Temperature Range: Negative twenty-two degrees Celsius to two hundred fifty degrees Fahrenheit (negative thirty degrees Celsius to one hundred twenty-one degrees Celsius)
• Maximum Differential Pressure: Ranges from one GPM (half inch valve) to ninety-five GPM (three inch valve)
• Close-off Pressure: One hundred psid
• Flow Characteristics: Equal percentage with flow control insert
• Body: Forged brass (ASTM B283)
• Flow Optimizer: Laser-milled, glass-reinforced Noryl
• Trim (Ball and Stem): Nickel-chrome plated brass or stainless steel
• Stem Seals: EPDM O-ring and Teflon bearings
• Ball Seals: Reinforced Teflon seals with EPDM O-rings
• Regulator: Hydrogenated acrylonitrile-butadiene rubber rolling diaphragm in stainless steel housing
• Compatible Actuators: Non-spring return: ML6161, ML7161, MN6105*, MN7505*; Spring return: MS6105, MS7505*, MS8105; MS6103, MS7503, MS8103 only at half inch or three-quarter inch (DN15 ~ DN20)
• Minimum Torque Required: Thirty-five lb-in (four Nm) up to three inches (DN80) or eighteen lb-in (two Nm) up to three-quarter inch and one inch up to nine GPM
• Warranty: One year on valves, five years on actuators
• Packaging: Box
• Product Status: Active
