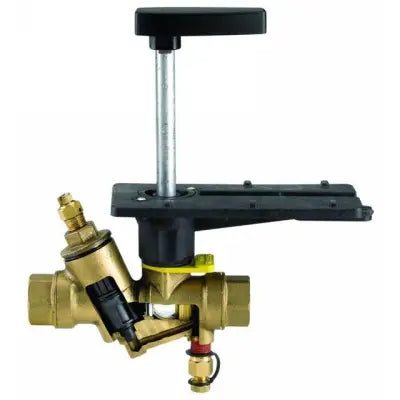

HONEYWELL VRN2CFSA0000 Pressure Independent Control Valve 1 in NPT 2-Way 4 GPM

Product Description

The HONEYWELL VRN2CFSA0000 is a pressure independent control valve designed to manage flow in hydronic systems. It features integrated temperature and flow control, adjusting flows automatically with pressure changes. The valve includes a pressure control cartridge for flow balancing, making it suitable for water and glycol solutions up to fifty percent.

• NPT connection for easy installation
• Suitable for hot or chilled water with glycol
• Equal percentage flow characteristic with patented control ball insert

Product Highlights

This valve provides efficient flow regulation, ensuring optimal temperature control in various applications.

Product Information

Standard Information

• Manufacturer: Honeywell
• Model Number: VRN2CFSA0000

Technical Specifications

• Type: Control Valve
• Connection: NPT
• Pattern: 2-way
• Size: 1 in
• GPM: 4 GPM
• Trim Material: Stainless Steel
• Valve Type: Dynamic Pressure Regulated Control Valve
• Body Style: Two-way ball valve, full port with patented flow control insert
• Pipe Size: 1/2 in to 3 in with female NPT fittings
• Body Pressure Rating: 360 psi at 250°F
• Controlled Medium: Water or glycol solutions up to fifty percent
• Medium Temperature Range: -22°C to 250°F
• Maximum Differential Pressure: 1 GPM to 95 GPM
• Close-off Pressure: 100 psid
• Flow Characteristics: Equal percentage with flow control insert
• Body: Forged brass (ASTM B283)
• Flow Optimizer: Laser-milled, glass-reinforced Noryl
• Trim: Nickel-chrome plated brass or stainless steel
• Stem Seals: EPDM O-ring and Teflon bearings
• Ball Seals: Reinforced Teflon seals with EPDM O-rings
• Regulator: Hydrogenated acrylonitrile-butadiene rubber diaphragm
• Compatible Actuators: Non-Spring Return: ML6161, ML7161; Spring Return: MS6105, MS7505
• Minimum Torque Required: 35 lb-in for 3 in and 18 lb-in for 3/4 in
• Warranty: 1 year on valves, 5 years on actuators
