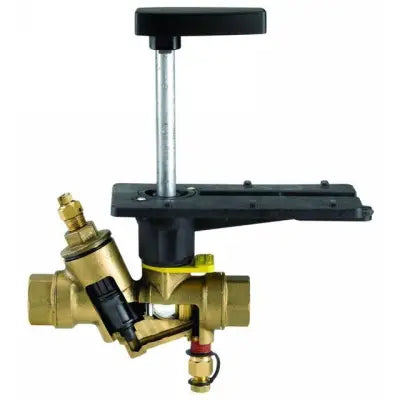

Honeywell VRN2CESA0000 Pressure Independent Control Valve

Product Description

The Honeywell VRN2CESA0000 is a pressure independent control valve that regulates flow in hydronic systems. It features automatic temperature control and adjusts for changes in piping pressure to maintain consistent heating or cooling. This valve includes a pressure control cartridge, allowing for accurate flow balancing, and is compatible with water or glycol solutions up to fifty percent.

• Pressure control cartridge for flow regulation.
• Forged brass body for durability.
• Utilizes female NPT connections for easy installation.

Product Highlights

The Honeywell VRN2CESA0000 is designed for reliable performance in hydronic applications, ensuring optimal temperature control in various systems.

Product Information

Standard Information

• Manufacturer: Honeywell
• Type: Control Valve

Technical Specifications

• MPN: VRN2CESA0000
• Connection: NPT
• Pattern: 2-way
• Size: 1 inch
• Flow Rate: 3 GPM
• Body Style: Two-way ball valve, straight-through flow
• Body Pressure Rating: 360 psi (2500 kPa) at 250°F (121°C)
• Controlled Medium: Water or Glycol solutions (up to 50%)
• Medium Temperature Range: -22°C to 250°F (-30°C to 121°C)
• Maximum Differential Pressure: 1 GPM (1/2inch valve) to 95 GPM (3inch valve)
• Close-off Pressure: 100 psid
• Flow Characteristics: Equal percentage with flow control insert
• Body Material: Forged brass (ASTM B283)
• Trim Material: Stainless Steel
• Stem Seals: EPDM O-ring and Teflon bearings
• Regulator: Hydrogenated acrylonitrile-butadiene rubber rolling diaphragm in stainless steel housing
• Compatible Actuators: Various models available
• Minimum Torque Required: 35 lb-in (4 Nm) (up to 3inch)
• Warranty: 1 year on valves, 5 years on actuators
