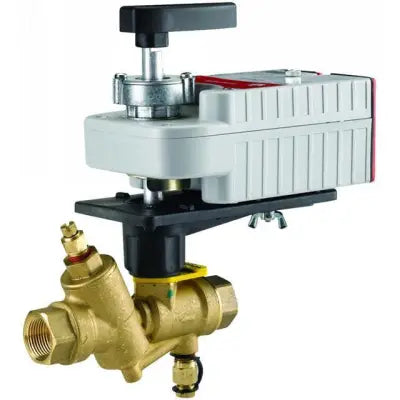

Honeywell VRN2CDSX7200 Pressure Independent Control Valve Assembly

Product Description

The Honeywell VRN2CDSX7200 is a control valve assembly that provides pressure regulation for flow control in hydronic systems. This valve operates efficiently in maintaining temperature stability even during pressure changes, making it suitable for hot and chilled water or glycol mixtures up to fifty percent. It features a built-in pressure control cartridge that assists in the balancing process.

• NPT connections for easy installation.
• Designed for use with hot or chilled water and glycol solutions.
• Durable stainless steel trim.

Product Highlights

The Honeywell VRN2CDSX7200 offers reliable operation in diverse temperature ranges and applications.

Product Information

Standard Information

• Manufacturer: Honeywell
• Brand: Honeywell

Technical Specifications

• MPN: VRN2CDSX7200
• Type: Control Valve
• Valve Type: Dynamic Pressure Regulated Control Valve
• Connection: NPT
• Size: 1 inch
• Pattern: 2-way
• GPM: 2 GPM
• Trim Material: Stainless Steel
• Control Signal: Two Position
• Body Style: Two-way ball valve, straight-through flow, full port with patented flow control insert
• Pipe Size: 1/2 inch to 3 inch with female NPT pipe fittings
• Body Pressure Rating (maximum): 360 psi (2500 kPa) at 250°F (121°C)
• Controlled Medium: Water or Glycol solutions up to 50%; not suitable for combustible gases, oil or steam
• Medium Temperature Range: -22°C to 250°F (-30°C to 121°C)
• Maximum Differential Pressure: 1 gpm (1/2 inch valve) to 95 gpm (3 inch valve)
• Close-off pressure: 100 psid
• Flow Characteristics: Equal percentage with flow control insert
• Body: Forged brass (ASTM B283)
• Flow Optimizer: Laser-milled, glass-reinforced Noryl
• Trim (ball and stem): Nickel-chrome plated brass, or stainless steel
• Stem Seals: EPDM O-ring and Teflon bearings
• Ball Seals: Reinforced Teflon seals, with EPDM O-rings
• Regulator: Hydrogenated acrylonitrile-butadiene rubber rolling diaphragm in stainless steel housing
• Compatible Actuators: Non-Spring Return: ML6161, ML7161, MN6105*, MN7505*; Spring Return: MS6105, MS7505*, MS8105; MS6103, MS7503, MS8103 only at 1/2 inch or 3/4 inch (DN15 ~ DN20)
• Minimum Torque Required: 35 lb-in (4 Nm) up to 3 inch (DN80), 18 lb-in (2 Nm) up to 3/4 inch (and 1 inch up to 9 gpm)
• Warranty: 1 year on valves, 5 years on actuators
