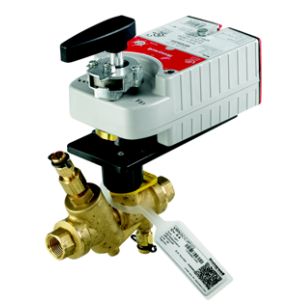

Honeywell VRN2BMPX4002 Pressure Regulated Control Valve Assembly

Product Description

The Honeywell VRN2BMPX4002 is a pressure-regulated control valve assembly. This product works to manage flow and temperature in hydronic systems. It adjusts flow automatically to maintain the desired temperature, even when pressures change. The valve has an integrated pressure control cartridge for balancing flow effectively.

• Features a three-fourth inch NPT connection.
• Operates with hot or chilled water and up to fifty percent glycol solutions.
• Requires a twenty-four VAC nominal supply voltage.

Product Highlights

This valve is designed to work with Honeywell direct-coupled actuators, ensuring compatibility for various applications in heating and cooling systems.

Product Information

Standard Information

• Manufacturer: Honeywell
• Part Number: VRN2BMPX4002

Technical Specifications

• Model: P1912120
• Type: Assembly
• Connection: NPT
• Supply Voltage (Nominal): 24 VAC
• Size: 3/4 inches
• GPM: 10 GPM
• Control Signal: Floating, Two Position
• Valve Type: Dynamic Pressure Regulated Control Valve
• Pattern: 2-way
• Body Style: Two-way ball valve, straight-through flow, full port
• Pipe Size: 1/2 inches to 3 inches with female NPT pipe fittings
• Body Pressure Rating (maximum): 360 psi at 250°F
• Controlled Medium: Water or glycol solutions up to 50%
• Medium Temperature Range: -22°C to 250°F
• Maximum Differential Pressure: 1 GPM to 95 GPM
• Close-off Pressure: 100 psid
• Flow Characteristics: Equal percentage with flow control insert
• Body: Forged brass
• Flow Optimizer: Laser-milled, glass-reinforced Noryl
• Trim Material: Stainless Steel
• Compatible Actuators: Various Honeywell models
• Minimum Torque Required: 35 lb-in
• Warranty: 1 year on valves, 5 years on actuators
