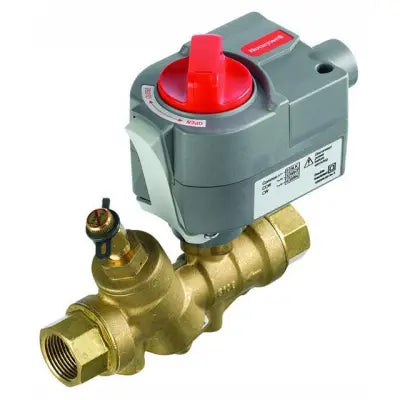

Honeywell VRN2BMPA2000 Pressure Independent Control Valve

Product Description

The Honeywell VRN2BMPA2000 is a pressure independent control valve for hydronic systems. This two-way valve has a three-fourths inch NPT connection and a maximum flow rate of ten gallons per minute. It works by integrating flow and temperature controls to adapt to changes in piping pressures, ensuring consistent temperature maintenance. The valve body is made of forged brass with stainless steel components and is compatible with water or glycol solutions.

• Features a three-fourths inch NPT connection.
• Designed for a maximum flow rate of ten gallons per minute.
• Ideal for water or glycol solutions.

Product Highlights

This valve automates flow control, making it essential for efficient system management in commercial and residential settings.

Product Information

Standard Information

• Manufacturer: Honeywell
• Brand: Honeywell

Technical Specifications

• MPN: VRN2BMPA2000
• Type: Control Valve
• Connection: NPT
• Size: 3/4 inches
• Pattern: Two-way
• Flow Rate: 10 GPM
• Supply Voltage: 24 VAC
• Trim Material: Stainless Steel
• Control Signal: Floating, Two Position
• Valve Type: Dynamic Pressure Regulated Control Valve
• Pipe Size: 1/2 inches to 3 inches
• Body Pressure Rating: 360 psi
• Controlled Medium: Water or glycol solutions
• Medium Temperature Range: -22 degrees C to 250 degrees F
• Maximum Differential Pressure: 1 GPM to 95 GPM
• Close-off Pressure: 100 psid
• Flow Characteristics: Equal percentage
• Body: Forged brass
• Weight: 4.32 lbs
• Packaging: Box
• Product Status: Active
