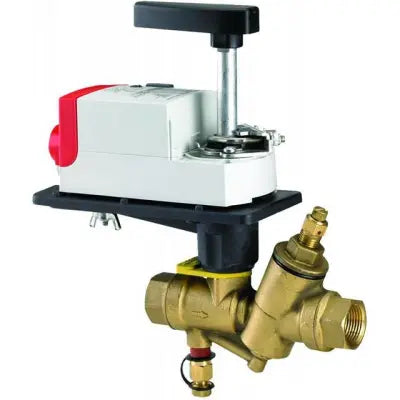

Honeywell VRN2BJSX4000 Pressure Independent Control Valve

Product Description

The Honeywell VRN2BJSX4000 is a pressure independent control valve designed for hydronic systems. This valve features a three-fourth inch NPT connection and operates with a two-way valve pattern. It has a flow rate of seven gallons per minute and includes stainless steel trim for durability. The valve manages flow effectively even when piping pressures change and is suitable for water or glycol solutions up to fifty percent.

• Three-fourth inch NPT connection enables easy installation.
• Two-way valve design helps maintain consistent temperature.
• Operates on twenty-four VAC for wide compatibility.

Product Highlights

This valve is built to control flow in diverse hydronic setups while ensuring maximum efficiency and reliability.

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer: Honeywell

Technical Specifications

• Model Number: VRN2BJSX4000
• Type: Control Valve
• Connection: NPT
• Size: Three-fourth inch
• Pattern: Two-way
• GPM: Seven GPM
• Trim Material: Stainless Steel
• Supply Voltage (Nominal): Twenty-four VAC
• Control Signal: Floating, Two Position
• Valve Type: Dynamic Pressure Regulated Control Valve
• Body Style: Two-way ball valve, straight-through flow, full port with patented flow control insert
• Pipe Size: Half inch to three inches with female NPT pipe fittings
• Body Pressure Rating (maximum): Three hundred sixty psi at two hundred fifty degrees Fahrenheit
• Controlled Medium: Water or Glycol solutions up to fifty percent; not for combustible gases, oil, or steam
• Medium Temperature Range: Negative twenty-two degrees Celsius to two hundred fifty degrees Fahrenheit
• Maximum Differential Pressure: One GPM (half inch valve) to ninety-five GPM (three inch valve)
• Close-off Pressure: One hundred psid
• Flow Characteristics: Equal percentage with flow control insert
• Body: Forged brass
• Flow Optimizer: Laser-milled, glass-reinforced Noryl
• Trim (ball and stem): Nickel-chrome plated brass, or stainless steel
• Stem Seals: EPDM O-ring and Teflon bearings
• Ball Seals: Reinforced Teflon seals, with EPDM O-rings
• Regulator: Hydrogenated acrylonitrile-butadiene rubber rolling diaphragm in stainless steel housing
• Minimum Torque Required: Thirty-five lb-in up to three inches, eighteen lb-in up to three-fourths inches
• Warranty: One year on valves, five years on actuators
