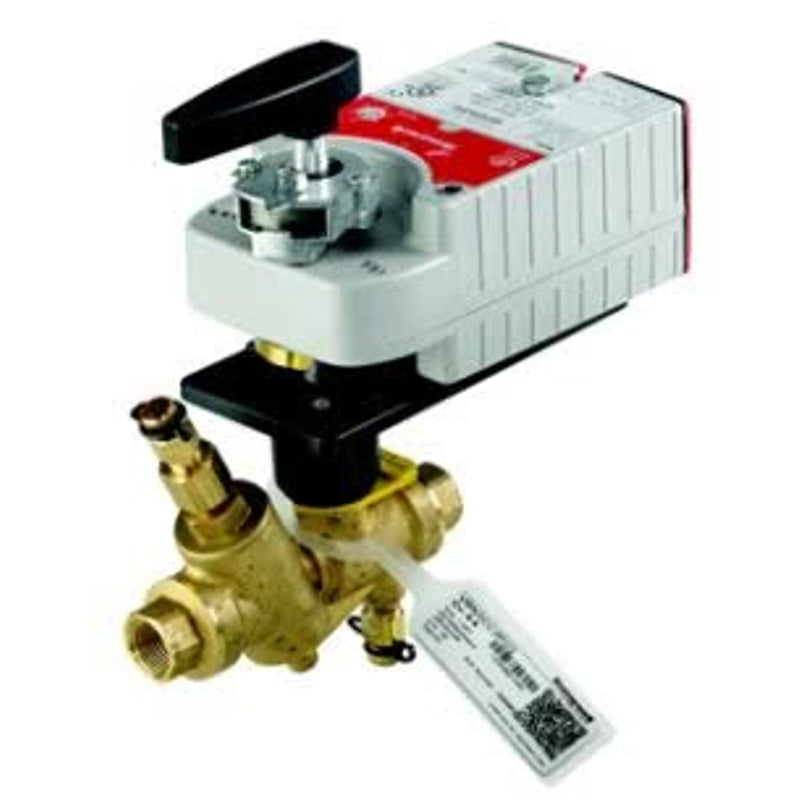

Honeywell VRN2BHPXC002 Pressure Independent Control Valve

Product Description

The Honeywell VRN2BHPXC002 is a pressure independent control valve assembly designed for hydronic systems. This two-way valve has a three-fourth inch NPT connection and supports a flow rate of six gallons per minute. It effectively controls hot or chilled water, accommodating up to fifty percent glycol solutions.

• Features a three-fourth inch NPT connection
• Maximum flow rate of six gallons per minute
• Operates with a twenty-four volt AC supply voltage

Product Highlights

This valve is equipped with a pressure control cartridge ensuring flow balance and maintaining temperature in hydronic applications.

Product Information

Standard Information

• Brand: Honeywell
• MPN: VRN2BHPXC002

Technical Specifications

• Type: Assembly
• Connection: NPT
• Supply Voltage (Nominal): 24 VAC
• Pattern: Two-way
• Size: Three-fourth inch
• GPM: 6 GPM
• Control Signal: Floating, Two Position
• Valve Type: Dynamic Pressure Regulated Control Valve
• Body Style: Two-way ball valve, straight-through flow, full port with patented flow control insert
• Pipe Size: Half inch to three inch with female NPT pipe fittings
• Body Pressure Rating (maximum): 360 psi at 250°F
• Controlled Medium: Water or glycol solutions up to fifty percent
• Medium Temperature Range: -22°F to 250°F
• Maximum Differential Pressure: 1 gpm (half inch) to 95 gpm (three inch)
• Close-off Pressure: 100 psid
• Flow Characteristics: Equal percentage with flow control insert
• Body: Forged brass (ASTM B283)
• Flow Optimizer: Laser-milled, glass-reinforced Noryl
• Trim (ball and stem): Nickel-chrome plated brass or stainless steel
• Stem Seals: EPDM O-ring and Teflon bearings
• Ball Seals: Reinforced Teflon seals, with EPDM O-rings
• Regulator: Hydrogenated acrylonitrile-butadiene rubber rolling diaphragm in stainless steel housing
• Minimum Torque Required: 35 lb-in up to three inch
