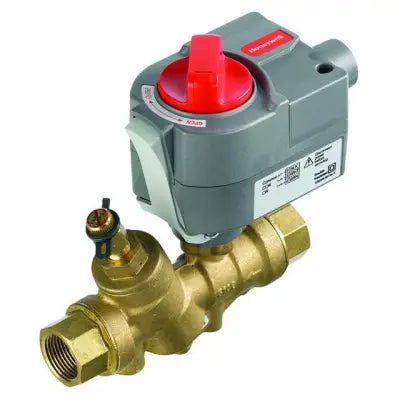

Honeywell VRN2BFSA2000 Pressure Independent Control Valve

Product Description

The Honeywell VRN2BFSA2000 is a pressure-independent control valve designed for precise flow and temperature management in hydronic systems. This valve maintains consistent temperatures during fluctuations in pressure, using an integrated pressure control cartridge that balances and regulates flow efficiently. The VRN2BFSA2000 features NPT connections and can handle water and glycol solutions with a concentration of up to fifty percent.

• NPT connections for easy installation
• Suitable for hot or chilled water applications
• Equal percentage flow characteristic for optimal performance

Product Highlights

This valve simplifies temperature control in hydronic applications by merging flow regulation into a single unit.

Product Information

Standard Information

• Manufacturer: Honeywell
• Type: Control Valve

Technical Specifications

• Connection: NPT
• Supply Voltage: 24 VAC
• Trim Material: Stainless Steel
• Size: three-fourth inches
• Control Signal: Floating, Two Position
• Valve Type: Dynamic Pressure Regulated Control Valve
• Body Style: Two-way ball valve, straight-through flow, full port
• Body Pressure Rating: 360 psi at 250°F
• Medium Temperature Range: -22°F to 250°F
• Flow Characteristics: Equal percentage with flow control insert
• Body: Forged brass (ASTM B283)
• Compatible Actuators: ML6161, ML7161, MN6105*
• Minimum Torque Required: 35 lb-in up to three inches
