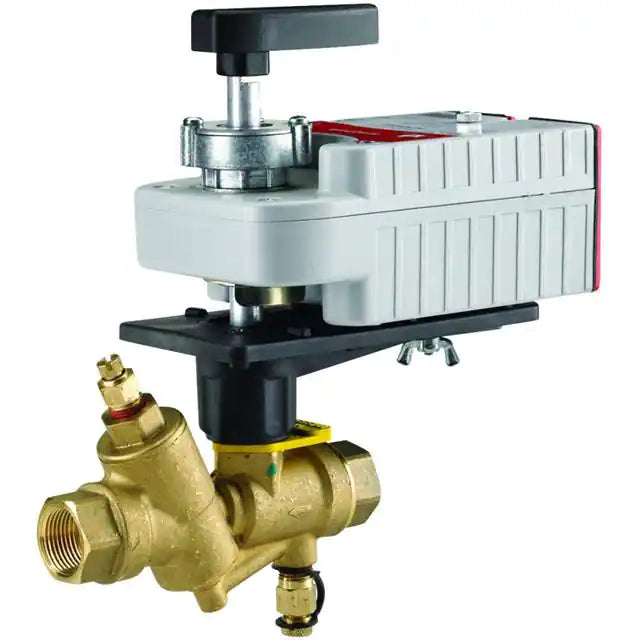

Honeywell VRN2BFPXB100 Pressure Independent Control Valve Assembly

Product Description

The Honeywell VRN2BFPXB100 is a pressure independent control valve assembly designed for hydronic systems. This valve regulates flow automatically to maintain the desired temperature despite pressure changes. It accepts hot or chilled water and glycol solutions, making it versatile for different applications.

• Threaded female NPT connections for easy installation.
• Integrated pressure control cartridge ensures effective flow balancing.
• Suitable for use with water or glycol solutions up to 50% concentration.

Product Highlights

This valve is built to integrate pressure regulation and flow control, making it ideal for temperature stability in heating and cooling systems.

Product Information

Standard Information

• Manufacturer: Honeywell
• MPN: VRN2BFPXB100

Technical Specifications

• Type: Assembly
• Connection: NPT
• Supply Voltage (Nominal): 24 VAC
• Trim Material: Stainless Steel
• Pattern: 2-way
• Size: 3/4 inch
• GPM: 4 GPM
• Control Signal: Analog, Floating
• Valve Type: Dynamic Pressure Regulated Control Valve
• Body Style: Two-way ball valve, straight-through flow, full port with patented flow control insert
• Pipe Size: 1/2 inch to 3 inch with female NPT fittings
• Body Pressure Rating (maximum): 360 psi (2500 kPa) at 250°F (121°C)
• Controlled Medium: Water or Glycol solutions up to 50%; not suitable for combustible gases, oil or steam
• Medium Temperature Range: -22°F to 250°F (-30°C to 121°C)
• Maximum Differential Pressure: 1 GPM (1/2 inch valve) to 95 GPM (3 inch valve)
• Close-off pressure: 100 psid
• Flow Characteristics: Equal percentage with flow control insert
• Body: Forged brass (ASTM B283)
• Flow Optimizer: Laser-milled, glass-reinforced Noryl
• Trim (ball and stem): Nickel-chrome plated brass, or stainless steel
• Stem Seals: EPDM O-ring and Teflon bearings
• Ball Seals: Reinforced Teflon seals, with EPDM O-rings
• Regulator: Hydrogenated acrylonitrile-butadiene rubber rolling diaphragm in stainless steel housing
• Compatible Actuators: Non-Spring Return: ML6161, ML7161, MN6105*, MN7505*; Spring Return: MS6105, MS7505*, MS8105; MS6103, MS7503, MS8103 (only at 1/2 inch or 3/4 inch)
• Minimum Torque Required: 35 lb-in (4 Nm) up to 3 inch; 18 lb-in (2 Nm) up to 3/4 inch (and 1 inch up to 9 GPM)
• Warranty: 1 year on valves, 5 years on actuators
• Weight: 7 lbs
• Product Status: Active
• Package: Box
