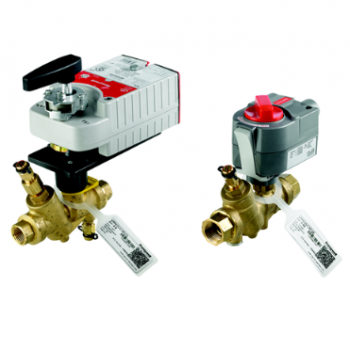

HONEYWELL VRN2BBSA1001 Pressure Independent Control Valve and Actuator Assembly

Product Description

The Honeywell VRN2BBSA1001 is a pressure independent control valve and actuator assembly. This assembly is designed for accurate flow and temperature control. It features a pressure control cartridge that allows for effective flow balancing. The valve includes 3/4 inch NPT connections, a two-way valve pattern, and stainless steel components for durability.

• 3/4 inch NPT connections.
• Includes stainless steel trim.
• Operates on a 24 VAC supply voltage.

Product Highlights

This assembly is ideal for systems requiring constant flow and temperature management.

Product Information

Standard Information

• Type: Assembly
• Connection: NPT

Technical Specifications

• Supply Voltage (Nominal): 24 VAC
• Trim Material: Stainless Steel
• Pattern: 2-way
• Size: 3/4 inch
• GPM: 1 GPM
• Control Signal: Floating, Two Position
