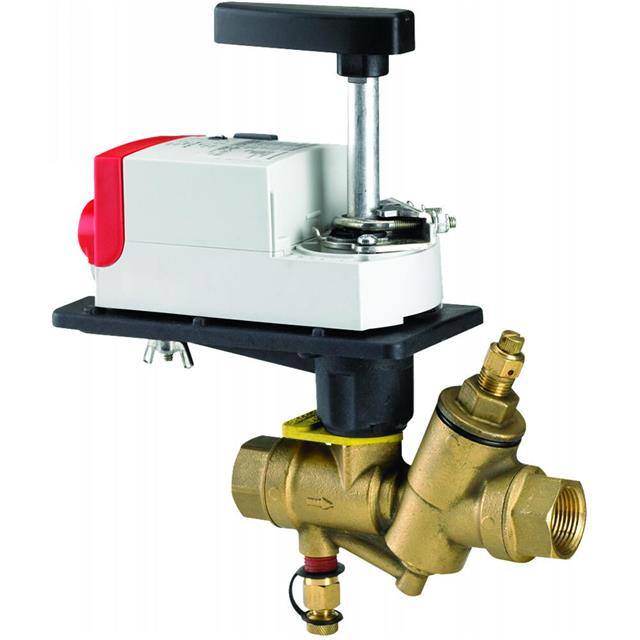

HONEYWELL VRN2AJSXC002 Pressure Independent Control Valve

Product Description

The Honeywell VRN2AJSXC002 is a pressure independent control valve designed for hydronic systems. This valve regulates flow and maintains temperature during pressure changes. It features a built-in pressure control cartridge for precise flow balancing. It is compatible with Honeywell direct-coupled actuators and can handle hot or chilled water mixed with up to fifty percent glycol solutions.

• Sizes available from one half to three inches with female NPT connections
• Flow rates from one to ninety-five gallons per minute
• Includes a differential pressure regulator for a consistent pressure drop

Product Highlights

This valve is essential for maintaining system efficiency in heating and cooling applications.

Product Information

Standard Information

• Manufacturer: Honeywell
• MPN: VRN2AJSXC002

Technical Specifications

• Type: Assembly
• Connection: NPT
• Supply Voltage: 24 VAC
• Trim Material: Stainless Steel
• Pattern: 2-way
• Size: 1/2 inch
• GPM: 7 GPM
• Control Signal: Floating, Two Position
• Valve Type: Dynamic Pressure Regulated Control Valve
• Body Style: Two-way ball valve, straight-through flow, full port
• Pipe Size: 1/2 inch to 3 inches with female NPT fittings
• Body Pressure Rating: 360 psi at 250°F
• Controlled Medium: Water or Glycol solutions up to 50%
• Medium Temperature Range: -22°F to 250°F
• Maximum Differential Pressure: 1 GPM to 95 GPM
• Close-off Pressure: 100 psid
• Flow Characteristics: Equal percentage with flow control insert
• Body: Forged brass
• Flow Optimizer: Laser-milled glass-reinforced Noryl
• Trim: Nickel-chrome plated brass or stainless steel
• Stem Seals: EPDM O-ring and Teflon bearings
• Ball Seals: Reinforced Teflon seals
• Regulator: Hydrogenated acrylonitrile-butadiene rubber rolling diaphragm
• Compatible Actuators: Various Honeywell actuators
• Minimum Torque Required: 35 lb-in up to 3 inches
• Warranty: 1 year on valves, 5 years on actuators
