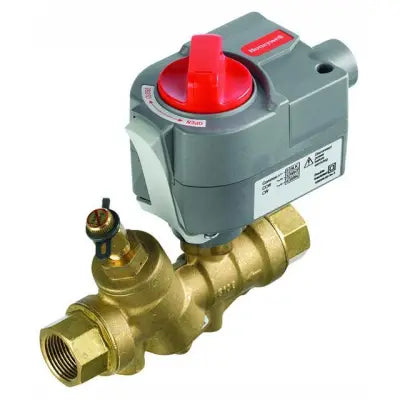

Honeywell VRN2AJPA1000 Pressure Independent Control Valve

Product Description

The Honeywell VRN2AJPA1000 is a pressure independent control valve designed to regulate flow in hydronic systems. This valve integrates flow control and temperature control functions, maintaining a consistent temperature by automatically adjusting flow rates when piping pressures change. It is suitable for use with hot or chilled water and glycol solutions up to fifty percent.

• 1/2 inch NPT connection
• 2-way valve with a seven GPM flow rate
• Operates on 24 VAC

Product Highlights

This valve features a pressure control cartridge for effective flow balancing. It is equipped with an electric actuator and provides floating on/off control with a fail-in-place function.

Product Information

Standard Information

• Manufacturer: Honeywell
• Brand: Honeywell

Technical Specifications

• MPN: VRN2AJPA1000
• Valve Type: Dynamic Pressure Regulated Control Valve
• Connection: NPT
• Pattern: 2-way
• Size: 1/2 inch
• GPM: 7 GPM
• Control Signal: Floating, Two Position
• Body Style: Two-way ball valve, straight-through flow, full port with patented flow control insert
• Body Material: Forged brass (ASTM B283)
• Trim Material: Stainless Steel
• Body Pressure Rating (maximum): 360 psi (2500 kPa) at 250°F (121°C)
• Controlled Medium: Water or glycol solutions up to fifty percent; not suitable for combustible gases, oil or steam
• Medium Temperature Range: -22°C to 250°F (-30°C to 121°C)
• Flow Characteristics: Equal percentage with flow control insert
• Flow Optimizer: Laser-milled, glass-reinforced Noryl
• Trim (ball and stem): Nickel-chrome plated brass or stainless steel
• Stem Seals: EPDM O-ring and Teflon bearings
• Ball Seals: Reinforced Teflon seals, with EPDM O-rings
• Regulator: Hydrogenated acrylonitrile-butadiene rubber rolling diaphragm in stainless steel housing
• Minimum Torque Required: 35 lb-in (4 Nm) up to 3 inch (DN80), 18 lb-in (2 Nm) up to 3/4 inch (and 1 inch up to 9 GPM)
• Input Voltage: 24 VAC
• Weight: 4.32 lbs
• Product Status: Active
