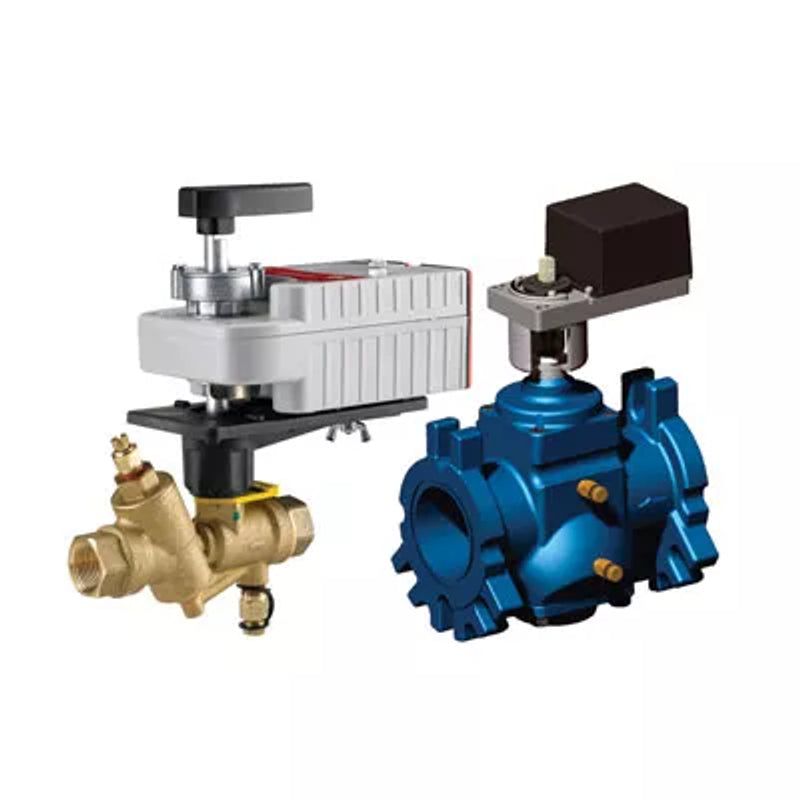

Honeywell VRN2AGPX8202 Pressure Independent Control Valve

Product Description

The Honeywell VRN2AGPX8202 Pressure Independent Control Valve is designed for effective flow and temperature control in hydronic systems. This valve maintains optimal temperature by automatically adjusting flow during pressure changes.

• Features a two-way valve pattern with NPT connection.
• Compatible with water or glycol solutions up to fifty percent.
• Constructed from durable forged brass.

Product Highlights

This valve is ideal for regulating temperature and flow in heating and cooling systems, ensuring reliability and efficiency.

Product Information

Standard Information

• Manufacturer Part Number: VRN2AGPX8202
• Valve Type: Dynamic Pressure Regulated Control Valve

Technical Specifications

• Input Voltage: 120 VAC, 240 VAC
• Trim Material: Stainless Steel
• Size: 1/2 inch to 3 inch
• Body Pressure Rating: 360 psi (2500 kPa) at 250°F (121°C)
• Medium Temperature Range: -22°C to 250°F (-30°C to 121°C)
• Flow Characteristics: Equal percentage with flow control insert
• Body: Forged brass (ASTM B283)
• Compatible Actuators: Various Honeywell models
