Honeywell VRN2ADPX5000 Pressure Independent Control Valve and Actuator Assembly

Product Description

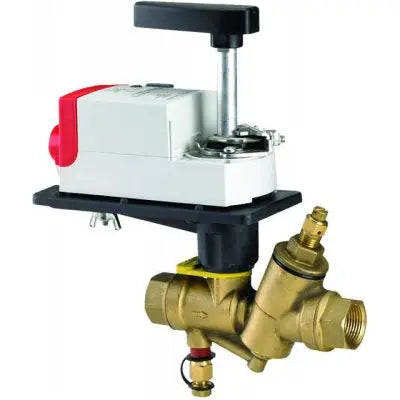

The Honeywell VRN2ADPX5000 is a pressure independent control valve and actuator assembly. This unit maintains a constant flow of hot or chilled water, suitable for closed-loop HVAC systems. It is designed to work with up to fifty percent glycol solutions and features a differential pressure regulator, ensuring fluid flow remains stable regardless of supply pressure changes. The valve body is made of forged brass and includes female NPT connections.

• Maintains constant flow in HVAC systems.
• Features a differential pressure regulator.
• Compatible with Honeywell direct coupled actuators.

Product Highlights

This valve and actuator assembly is optimized for ease of use and reliability in HVAC applications.

Product Information

Standard Information

• Manufacturer Part Number: VRN2ADPX5000
• Valve Type: Dynamic Pressure Regulated Control Valve

Technical Specifications

• Type: Assembly
• Pattern: 2-way
• Connection: NPT
• Size: 1/2 in
• GPM: 2 GPM
• Control Signal: Analog, Floating
• Body Style: 2-Way ball valve, straight-through flow, full port with patented flow control insert
• Pipe Size: 1/2 to 3 inches with female NPT fittings
• Body Pressure Rating: 360 psi (2500 kPa) at 250°F (121°C)
• Controlled Medium: Water or Glycol solutions up to fifty percent; not for combustible gases, oil, or steam
• Medium Temperature Range: -22°F to 250°F (-30°C to 121°C)
• Maximum Differential Pressure: 1 GPM (1/2 inch valve) to 95 GPM (3 inch valve)
• Close-off Pressure: 100 psid
• Flow Characteristics: Equal percentage with flow control insert
• Body: Forged brass (ASTM B283)
• Trim Material: Stainless Steel
• Flow Optimizer: Laser-milled, glass-reinforced Noryl
• Trim (Ball and Stem): Nickel-chrome plated brass or stainless steel
• Stem Seals: EPDM O-ring and Teflon bearings
• Ball Seals: Reinforced Teflon seals with EPDM O-rings
• Regulator: Hydrogenated acrylonitrile-butadiene rubber rolling diaphragm in stainless steel housing
• Compatible Actuators: Non-Spring Return: ML6161, ML7161, MN6105*, MN7505*; Spring Return: MS6105, MS7505*, MS8105; MS6103, MS7503, MS8103 only at 1/2 or 3/4 inch (DN15 ~ DN20)
• Minimum Torque Required: 35 lb-in (4 Nm) up to 3 inch (DN80); 18 lb-in (2 Nm) up to 3/4 inch and 1 inch up to 9 GPM
• Warranty: 1 year on valves, 5 years on actuators
• Packaging: Box
• Product Status: Active
