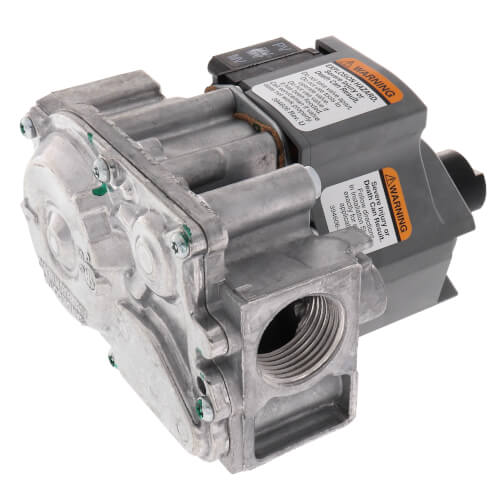

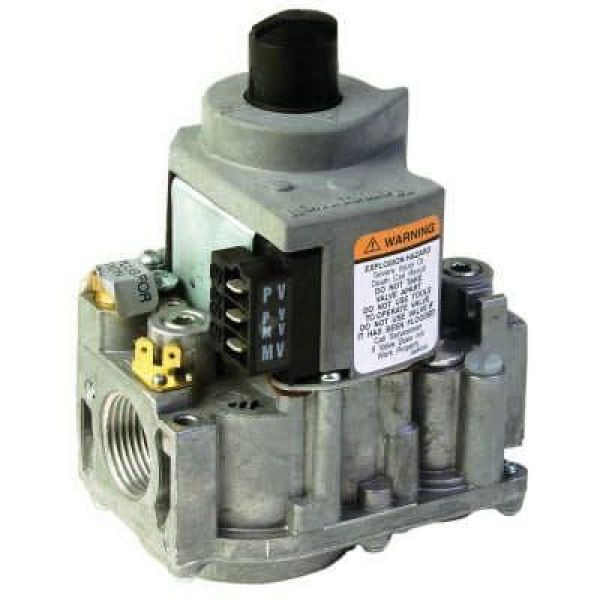

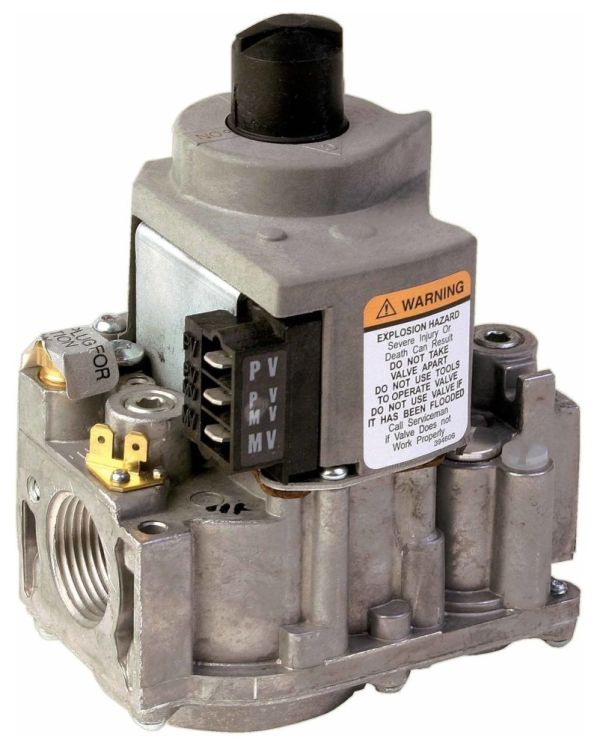

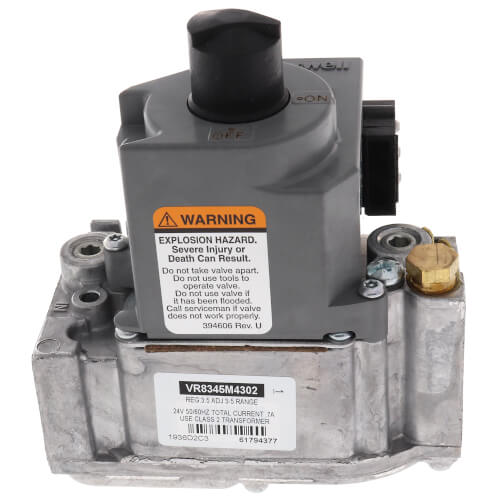

HONEYWELL VR8345M4302/U Standard Dual Direct Ignition/Intermittent Pilot Gas Valve 300000 BTU

Product Description

The HONEYWELL VR8345M4302/U is a universal electronic ignition gas valve designed for use in gas-fired appliances. This valve supports direct spark ignition, hot surface ignition, or intermittent pilot ignition, operating at twenty-four volts and suitable for gas capacities ranging from thirty to four hundred fifteen cubic feet per hour. Key features include a manual valve, two automatic operators, and a built-in pressure regulator that ensures safe operation. An internal inlet screen helps prevent contaminants from entering the valve.

• Replaces IP, HSI, or DSI gas controls
• Compatible with natural, manufactured, or LP gas; includes converter kit
• Accessible top adjustments for easy installation and maintenance

Product Highlights

This gas valve is compact and versatile for various gas types and appliances. It is equipped with a conversion kit and allows for straightforward adjustments from the top, making installation more efficient.

Product Information

Standard Information

• Brand: Honeywell
• Model/Part Number: VR8345M4302/U

Technical Specifications

• Fuel Type: Natural Gas, LP Gas
• Voltage: 24V
• Capacity (BTU): 300000
• Inlet Size: 3/4 inches
• Outlet Size: 3/4 inches
• Ignition Type: Intermittent Pilot, Direct Spark Ignition
• Dimensions: 5 3/8 inches high x 4 1/16 inches wide x 2 11/16 inches deep
• Material: Metal
