Product Description

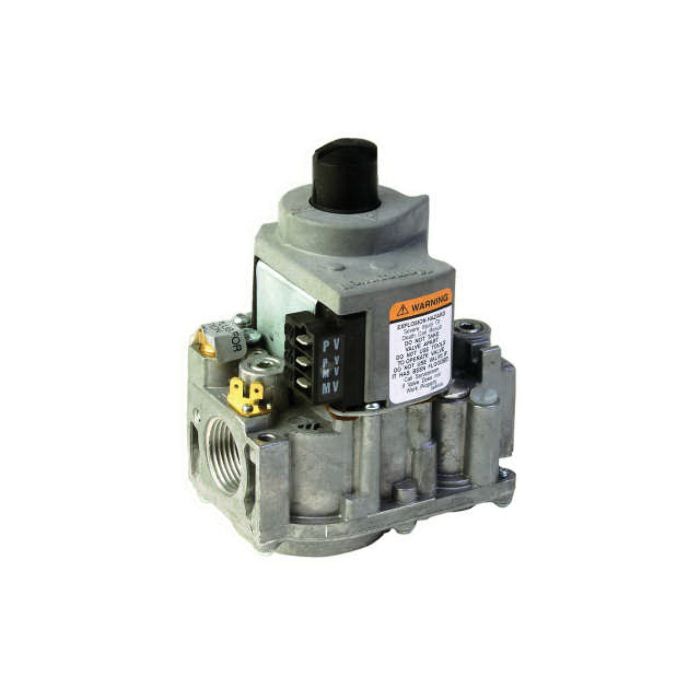

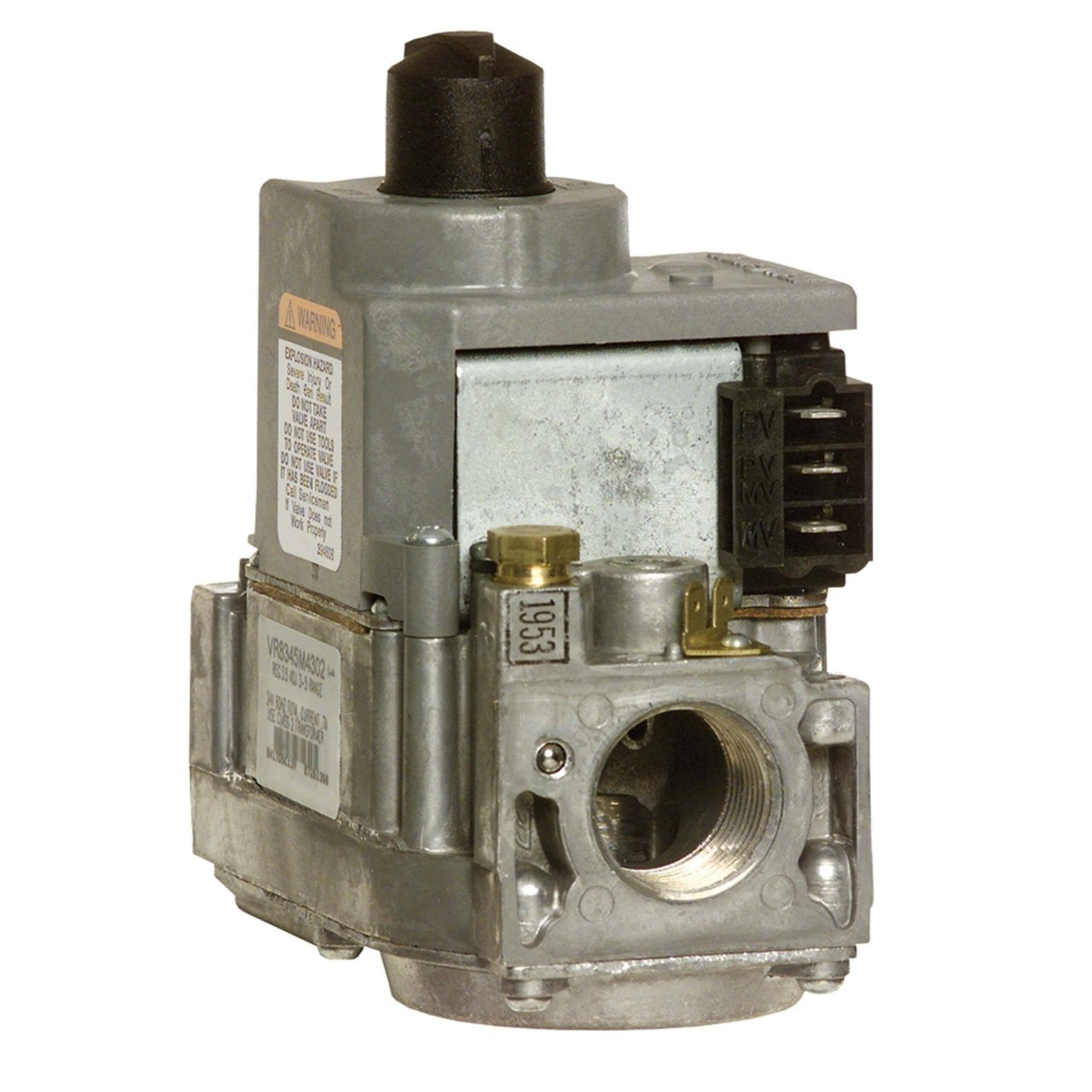

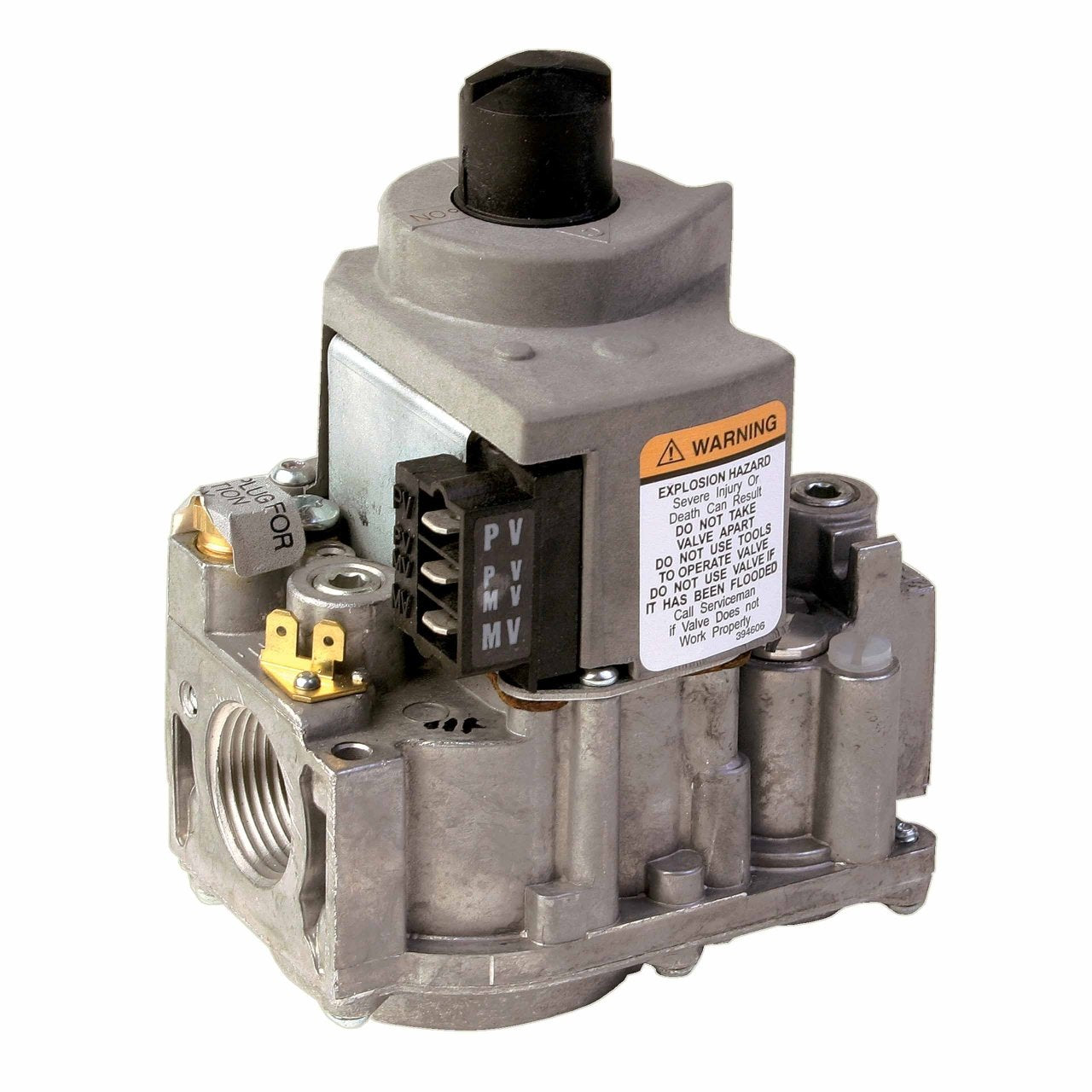

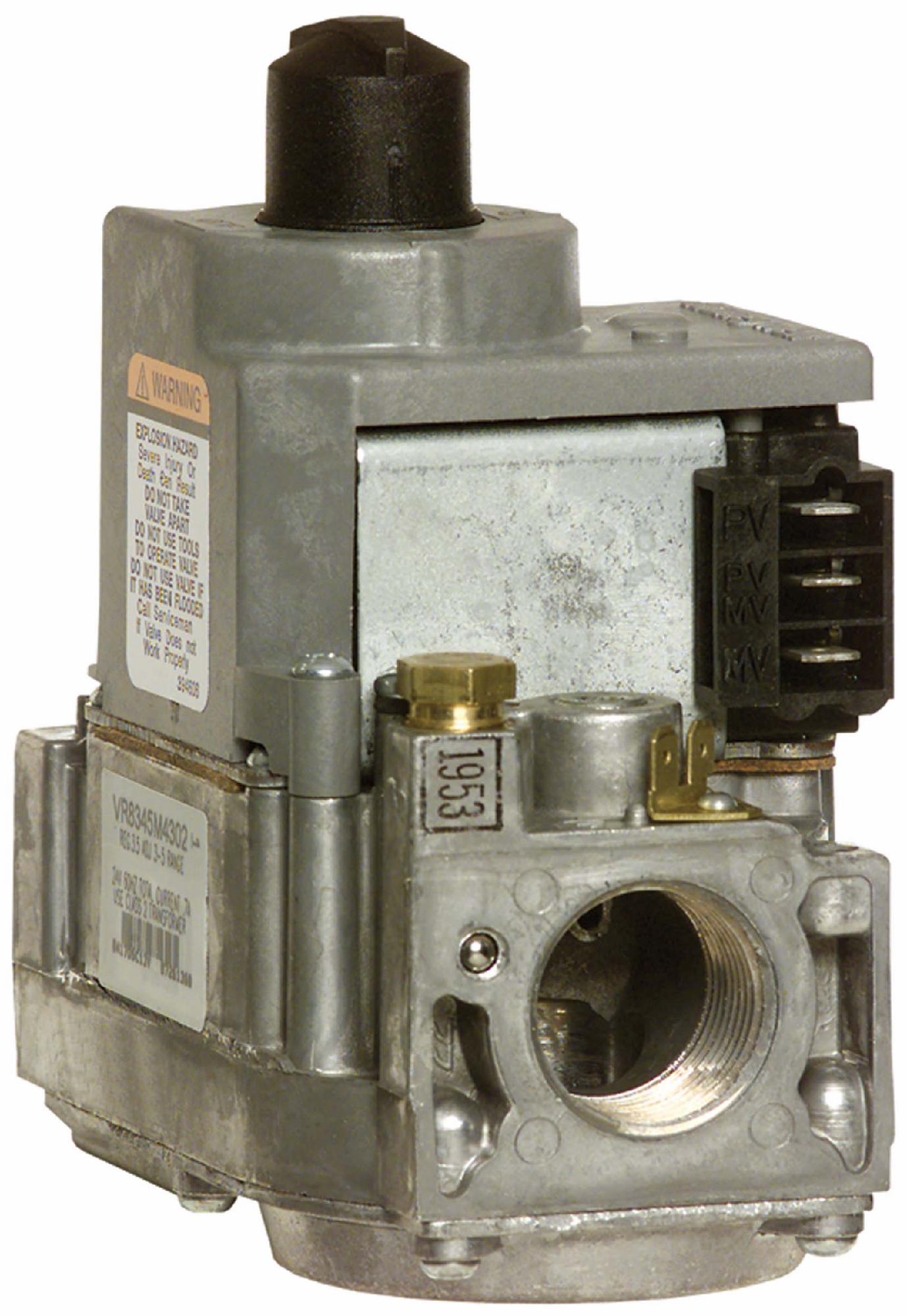

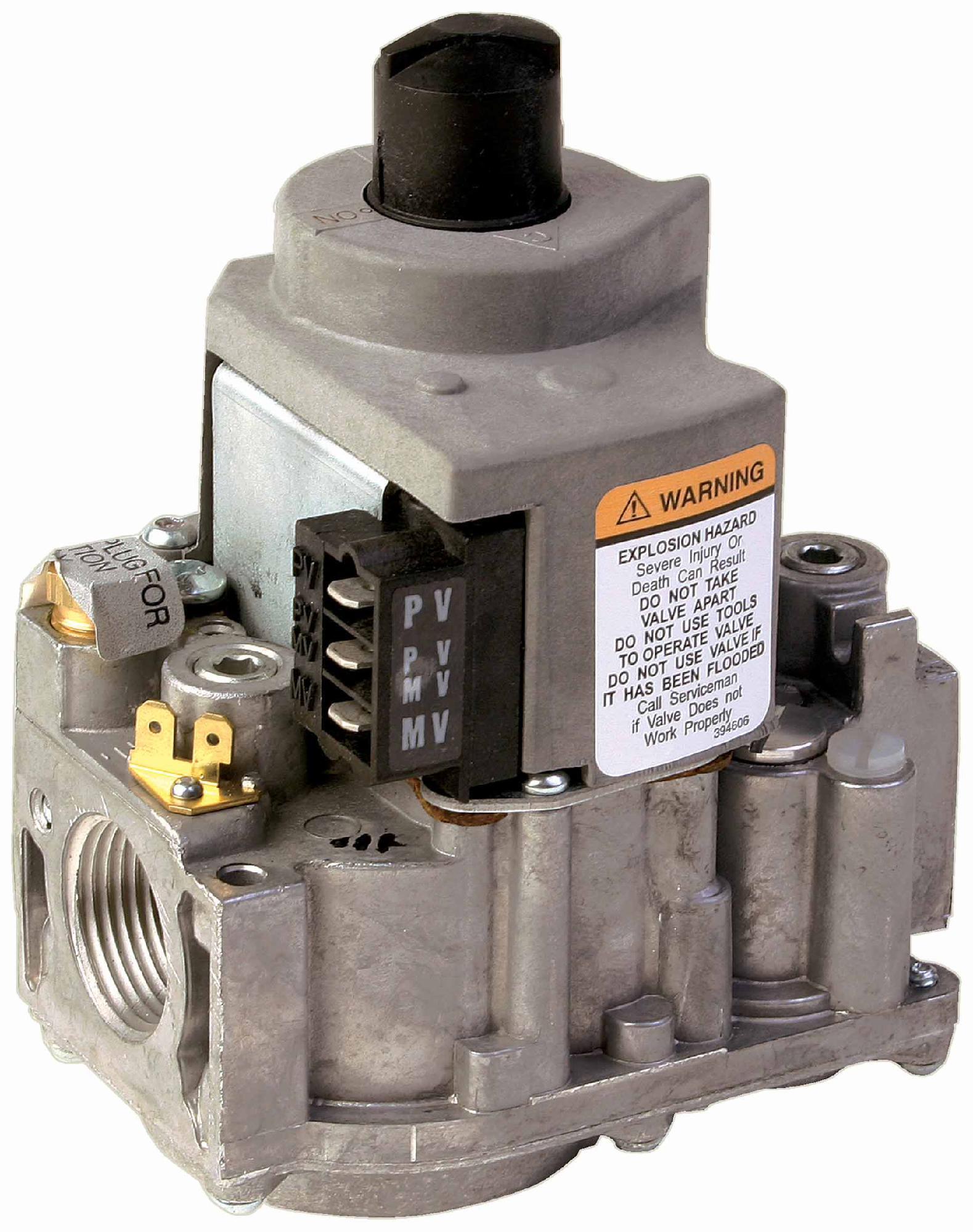

The Honeywell VR8345M4302/U is an intermittent/direct ignition gas valve with a standard opening, operating at 24 Vac. It measures 5-3/8" in height, 4-1/16" in width, and 2-11/16" in length. This gas valve is suitable for use with direct spark ignition, hot surface ignition, or intermittent pilot ignition in 24 Vac gas-fired appliances.
- Intermittent/Direct Ignition
- Standard Opening
- 24 Vac Operation
Product Highlights
The Honeywell VR8345M4302/U gas valve ensures reliable ignition and efficient operation for various gas-fired appliances.
Product Information
Standard Information
-
Brand: HONEYWELL
-
Manufacturer Part Number: VR8345M4302/U
-
Country of Origin: US
Technical Specifications
-
Brand: Honeywell
-
Voltage: 24V
-
Opening Type: Standard
-
Height: 5-3/8"
-
Width: 4-1/16"
-
Length: 2-11/16"
-
Application: Single Stage
-
Series: VR8345
-
Nominal Size: 3/4 in
-
Pressure: 0.5 psi
-
Ignition Type: Intermittent Direct Spark Ignition
-
Btu/hr Nominal: 30000 to 415000
-
Gas Type: Liquid Propane/Natural Gas
-
Coil Voltage: 24 V
-
Electrical Connections: 1/4 in Male Quick-Connect Terminal
-
Temperature Range: -40 to 175 deg F
-
MPN: VR8345M4302/U
-
Nominal Btu/hr: 30000 to 415000
-
Manufacturer: Honeywell
-
Product Type: VALVE
-
Model / MPN: VR8345M4302/U
-
Nominal Capacity: 300,000 BTUh
-
Electrical Connection: 1/4 Inch Quick Connect Male Terminals
-
Type: Standard Opening, Universal
-
Mounting Type: 0 to 90 in any direction from the upright position of the gas control knob, including vertically
-
Pressure Rating: 3.5 Inch WC
-
Catalog Number: 17N46
-
Model/Part Number: VR8345M4302/U
-
Inlet Connection Size: 3/4 in
-
Outlet Connection Size: 3/4 in
-
Regulation Type: Standard Opening
-
For Use With: Natural, manufactured, or liquefied petroleum gas
-
Includes: Two 3/4 in x 1/2 in Reducer Brushings, Natural to LP Gas Conversion Kit
-
Valve Body Pattern: Straight Through
-
Ambient Operating Temperature (Max): 175 F, 79 C
-
Ambient Operating Temperature (Min): -40 F, -40 C
-
Operating Frequency: 50 Hz, 60 Hz
-
Pilot Gas Outlet: Compression fitting for 1/4 in. OD tubing
-
Ambient Temperature Range: -40 to 175 F
-
Inlet-Outlet Size: 3/4" x 3/4"
-
Pressure Regulator Setting: 3.5"wc/0.87kPa
-
Series-Brand: VR Series
-
Stages: Single
-
Type of Pressure Regulator: Standard (2)
-
Body Pattern: Straight-through
-
Opening Characteristics: Standard Opening
-
Pressure Tapping: 1/8 in. NPT with plug
-
Pressure Ratings (psi): 1/2 psi
-
Frequency: 50 Hz; 60 Hz
-
Operating Temperature Range (F): -40 F to +175 F
-
Tradeline Value: Universal
-
Pressure Regulator Setpoint (in. wc): 3.5 in. wc
-
Pressure Regulator: Standard
-
Capacity (kBtuh): At 1 in. wc p.d.-- 300,000 BTUh: 30,000 BTUh minimum: 415,000 BTUh maximum Natural Gas
-
Inlet/Outlet Size (in.): 3/4 in. x 3/4 in.
-
Mounting: 0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically.
-
Pressure Ratings (kPa): 3.5 kPa
-
Type of Fuel: Natural (LP with included conversion kit)
-
Operating Temperature Range (C): -40 C to +79 C
-
Approvals: Underwriters Laboratories Inc.",UL Component Recognized MCCZ2.MH5323
-
Pressure Regulator Setpoint (kPa): 0.87 kPa
