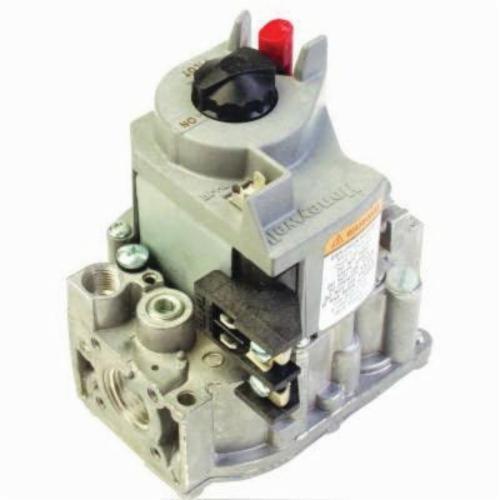

Honeywell VR8200A2132/U Gas Valve 24 V 1/2X1/2

Product Description

The HONEYWELL VR8200A2132/U is a combination gas control for 24 VAC gas-fired, standing pilot appliances with capacities from 30 to 300 cfh. This 1-stage gas valve includes safety shutoff, a manual valve, two automatic operators, a pressure regulator, and pilot adjustment. It provides dual automatic valves, ensuring safe operation by closing if gas or power supply is interrupted. It meets codes requiring dual safety shut-off.

• 1-Stage operation with Standing Pilot Ignition.
• Nominal heating capacity from 20,000 to 200,000 Btu/hr with 1/2 inch connection.
• Features safety shutoff, manual valve, two automatic operators, and pressure regulator.

Product Highlights

This compact gas control ensures safe and efficient operation for standing pilot gas-fired appliances, featuring dual automatic valves and an adjustable servo regulator.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: VR8200A2132/U
• Country of Origin: Mexico

Technical Specifications

• Brand: Honeywell
• Manufacturer: Honeywell
• Model Number: VR8200A2132/U
• Type: 1-Stage Gas Valve
• Size: 1/2 in
• Pressure Rating: 0.5 psi
• Ignition Type: Standing Pilot Ignition
• Nominal Capacity: 20000 to 200000 Btu/hr
• Catalog Number: 10P33
• Frequency: 60 Hz
• Coil Voltage: 24 VAC 60 Hz
• Electrical Connections: 1/4 in Male Quick-Connect Terminal
• Gas Type: Natural
• Series: VR8200
• Temperature Rating: 0 to 175 deg F
• Certifications: CSA 112395
