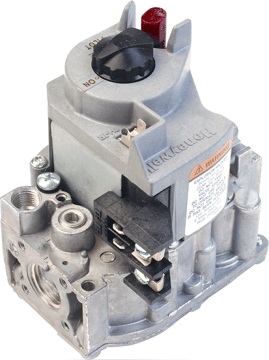

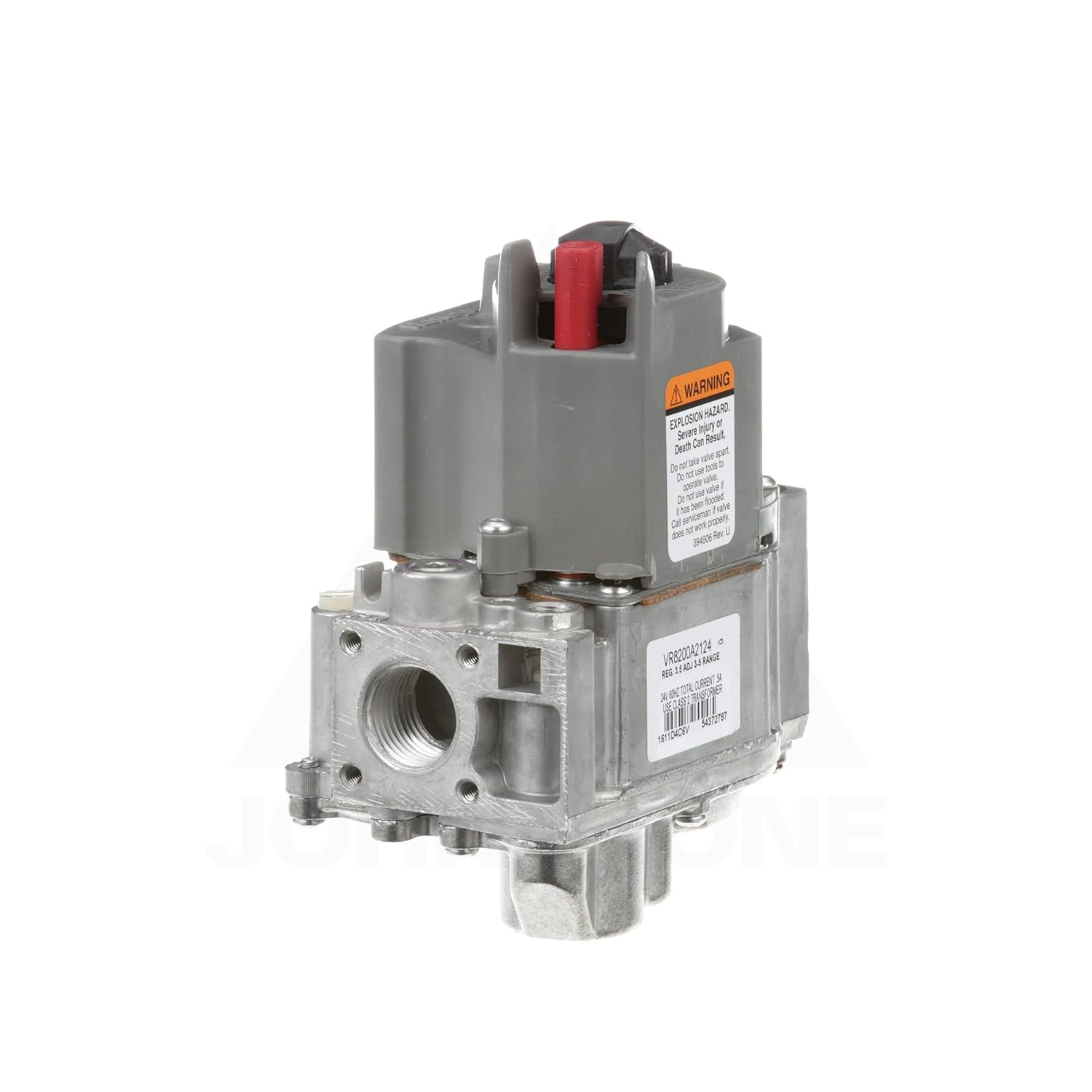

Honeywell VR8200A2124 Continuous Pilot Dual Automatic Valve Natural Gas 1/2 x 1/2

Product Description

The Honeywell VR8200A2124 is a continuous pilot dual automatic valve designed for natural gas systems. Intended for use in 24 VAC, gas-fired, standing pilot appliances, it supports capacities from 20 to 200 cubic feet per hour.

• Manual valve and two automatic operators
• Servo pressure regulator and pilot adjustment
• Accessible adjustments from top of control

Product Highlights

The Honeywell VR8200A2124 offers reliable performance in natural gas systems. It features dual automatic valves for increased safety and efficiency. This valve is designed for straightforward installation and maintenance, making it ideal for HVAC professionals.

Product Information

Standard Information

• Brand: Honeywell
• MPN: VR8200A2124
• Type: Continuous Pilot Dual Automatic Valve

Technical Specifications

• Gas Type: Natural Gas
• Nominal Size: 1/2 inch
• Dimensions: 5-3/16 inches L x 4-1/8 inches W x 3-1/4 inches D
• Coil Voltage: 24 VAC
• Pressure Rating: 1/2 psi
• Nominal Capacity: 20,000 to 200,000 BtuH
• Temperature Range: 0 to 175 degrees Fahrenheit
• Ignition Type: Standing Pilot
• Mounting Type: Upright/Vertical
• Electrical Connection: 1/4 inch Quick Connect Male Terminals
